PTR Baler and Compactor Company

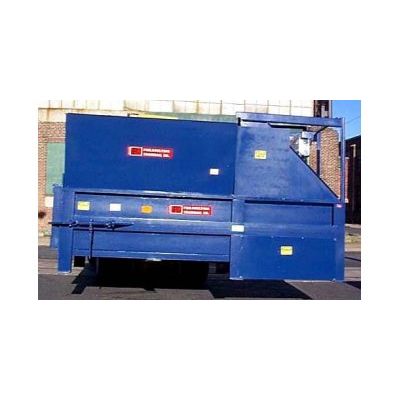

PTRModel TP-4000 -Tram-Pak Stationary Compactor

SHARE

When the TP-4000 Series was designed, we challenged our engineers to see how long the machines could hold up in the field. We are pleased to say those machines originally built in the early 70’s are still performing. All components are built using heavy-duty structural steel components and welded by AWS certified technicians. This unit has total U.L. approval, standard 3 button controls (On/Off key switch, mushroom stop, auto reverse) and a 13’ Sealtite.

Most popular related searches
  • Charge Box Capacity : 4 Cu Yd
  • Clear Top Opening (L x W) : 58” x 68”
  • Capacity Per Hour : 58.7 cy/hr

  • Electrical Motor 208 / 230 / 460 : 3 Phase
  • Electrical Control Voltage : 120 VAC
  • Cycle Time : 41 sec
  • Total Normal Force : 56,500 lbs
  • Total Maximum Force : 70,600 lbs
  • Normal Ram Face Pressure : 27.7 psi
  • Maximum Ram Face Pressure : 34.6 psi
  • Hydraulic Pump Capacity : 11.6 gpm
  • Normal Pressure : 2000 psi
  • Maximum Pressure : 2500 psi
  • Hydraulic Cylinder : 6” Bore
  • Hydraulic Cylinder : 3.5" Rod
  • Weight : 8,350 lbs
