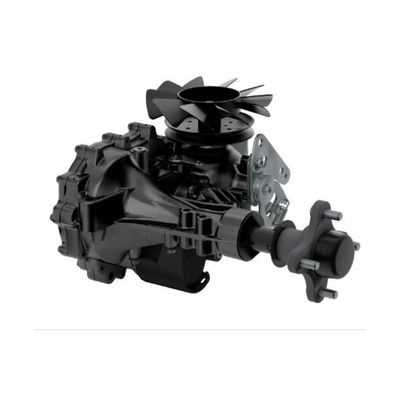

Hydro-Gear - Model ZT-3600 -Transaxle Precision Drive

HYDRO-GEAR GENUINE TRANSAXLE OIL SERVICE KIT
Keep your machine`s transaxles performing at optimum levels with routine maintenace. Hydro-Gear helps you take the guess-work out of which oil and oil filter to use in your Hydro-Gear ZT-3600 transaxles with our Hydro-Gear Commercial Transaxle Oil Service Kit. With this all-in-one kit you can quickly and easily perform an oil change on both transaxles.

• Designed with an all steel drive train

• Enhanced rotating kit for optimal performance

• Larger charge pump for added capability

• Transmission Model ZX
• Overall Transaxle Reduction 23.16:1
• Pump Displacement 0.73 in3 /rev [12 cc/rev]
• Motor Displacement 0.97 in3 /rev [16 cc/rev]
• Input Speeds Max Hi-Idle (no load)3600 rpm, Min (loaded) , 1800 rpm
• Output Torque up to 500 lb-ft [up to 677 Nm]
• Speed up to 10 mph [up to 16 kph]
• Gross Vehicle Weight up to 1600 lbs [725 kg]
• Axle Shaft Diameter 1.125 in [28.56 mm]
• Axle Shaft End Options Tapered, 4-bolt Flange, 5-bolt Flange
• Weight of Unit 34.5 lbs [15.6 kg]
