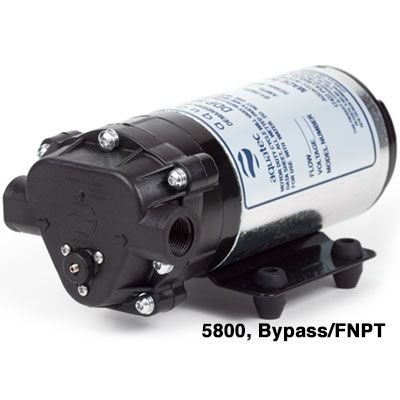

Aquatec - Model 58XX-7X01-B664 -Transfer & Recirculation Pump
Aquatec’s 3-chamber and 5-chamber diaphragm pumps are used for a variety of transfer and recirculation applications including heat exchange for open or closed loop systems, feed water transfer, diluted chemicals transfer, and agitation. Most models are designed for intermittent duty, although some models are rated for continuous operation. Aquatec offers a variety of chemically compatible materials which allow pumping of diluted and non-diluted fluids.
MOTOR:
TYPE: 12 VDC, Permanent Magnet,
Totally Enclosed, Non-Ventilated
LEADS: 14 AWG, 12” LONG
TEMP. LIMITS: This Motor is Not Equipped with Thermal
Protection. For User Safety, Optimal
Performance, and Maximum Motor Life, The
Motor Surface Temperature Should Not Exceed
150°F (66°C), as Shown on the Heat Rise Graph.
DUTY CYCLE: See Heat Rise Graph
PUMP DESIGN: 3 Chamber Diaphragm Pump, Self Priming,
Capable of Being Run Dry
TYPICAL APPLICATION: Industrial Grade Water Transfer
MATERIALS:
HOUSINGS: Nylon
VALVES: EPDM
DIAPHRAGM: Santoprene
FASTENERS: Stainless Steel
LIQUID TEMPERATURE: 170°F (77°C) Max.
PUMP CERTIFICATIONS: NSF Standard 58
