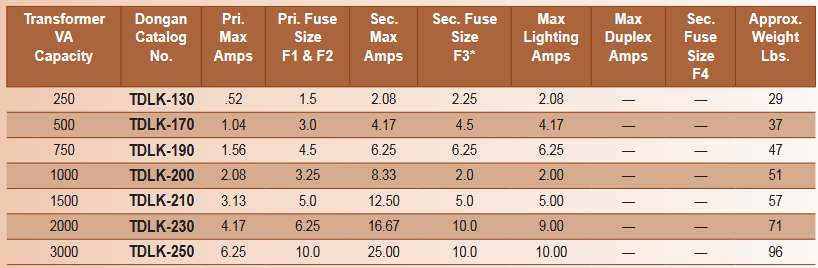

Dongan - Model TDLK 12 Series -Transformer Lighting Disconnect
Dongan Electric Manufacturing Company is pleased to display its new line of Transformer Lighting Disconnects. The products in this catalog represent the most advanced series of disconnects available in the market today Most important, these products have the approvals and certifications needed to compete and ship virtually worldwide.
Most popular related searches
- NEMA 12 / IP 54 enclosure.
- Primary Voltage: 480 VAC.
- Secondary Voltage: 120 VAC.
- 50 / 60 Hz.
- 200K AIC RATED
- One side of secondary grounded.
- Transformer is copper wound with electrostatic shield (earth metal screen).
- Finger-safe terminals.
- All overcurrent protection provided
- Primary - Class CC
- Secondary - Supplementary fuses (13/32” x 1 Z\x”).
- Complies with automotive indus- try specifications.
- 3 position, padlockable cam switch.
- Gasketed receptacle available as an added cost option on all sizes.
- Green “ON” pilot light provided.
- Dedicated physical earth terminal.
- Bonded door ground stud.
- Options: Other voltage combinations available.
