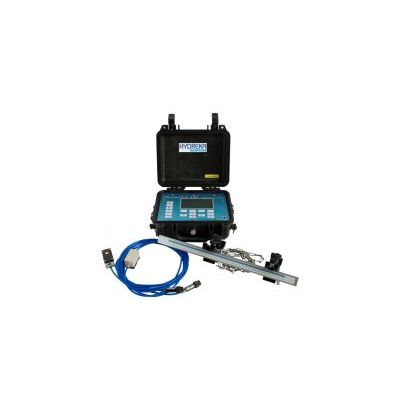

HYDREKA ChronoFlo - Model 2 -Transit Time Ultrasonic Pipe Flowmeter

The flow meter is equipped with a data recorder that can record up to 128,000 values, which can be processed with Winfluid, and can operate in full standalone mode for up to 1 month.

The flow meter is usable for both treatment (water and sludge) and drinking water. Its applications include checking fixed station flow meters (DEM, etc.), analysing raising pumps, diagnostics, etc. It is compatible with all our sampler range and is an essential tool for authorities such as SATESE, SATEP, BE, etc.

HYDREKA’s range of Transit Time Ultrasonic Flowmeters use advanced complete coded signal digital correlation processing techniques to achieve stable measurements even in difficult conditions (drinking water and effluents). The same core processing electronics are used in a number of different configurations to suit a wide range of applications. These configurations include Portable and Permanent control units, and transducers with mounting arrangements for a wide range of pipe sizes. Flow tube cells for in-line installations for very low flows and dosing control applications are also available.

• Drinking water and effluents
• Ease of installation
• Same unit on a wide range of pipe sizes
• Non invasive measurement
• No pressure loss
• No risk of leakage
• No disruption of plant operation
• Hygienic integrity
• No fluid contact
• No need for zero adjustment
• Advanced DSP coded signal correlation provides highly stable transit timing measurements, even in difficult conditions
• Real time directly measured speed of sound compensation reduces flow error from fluid variations with temperature
• and pressure
• Built in wall thickness facility standard [requires optional wall thickness transducer]
• Internal logging
• External inputs for thermal energy and external flowmeter logging applications
• External outputs for process control
• Graphics LCD display
