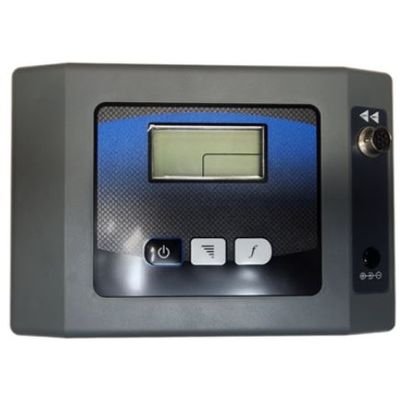

Insight Vision - Model SnapTRACK -Transmitter

Transmitter functions include improved transmitter induction, multi-frequency coupled induction ranging from 8 kHz to 118 kHz, and automatic impedance matching for direct connections. The transmitter can simultaneously apply two frequencies to a utility. From one transmitter setting the user can locate the main line as well as other services by “lighting up” the entire site. This set-and-forget feature saves you time and money by reducing the need to repeatedly relocate the transmitter. All functions are accessed via weather-proof membrane buttons and both user input and transmitter status are verified with audible responses.

Available Operating Frequencies
131 Khz, 82.315 kHz, 65.536 kHz, 32.768 kHz, 8.192 kHz, 4.010 kHz, 815 Hz, 797 Hz, 640 Hz & 512 Hz

Indicators
AC load assistance measurement, relative ohms, voltage, live voltage output, current output, power level, frequency, mode, battery indication alert, low battery indicator audio/visual with modulated low battery warning transmitted to the receiver.

Load Matching
Automatic from 5 ohms to 25,000 ?

Output Power
3 power settings Low & Medium Frequency Range: 0.2w to 3w High Frequencies (above 44kHz) : 0.2 to 1w

Power Source
8 “C” cell batteries

Battery Life
Continuous: 8-15 hours (dependent on load, frequency, and power setting)

Operating Temperature
-4° F to 133° F (-20° C to 55° C)

Ingress Protection Rating
IP65

Dimensions
8.5″ x 5.8″ x 2.5″ (21 cm x 15 cm x 6 cm)

Weight
C-cell: 2.2 lbs (1 kg)

Warranty
48 Month (4 Years) Warranty when registered within 1 month of the date of purchase. Warranty from date of delivery against defects in material and workmanship (EXCEPT BATTERIES) on all instruments. This warranty is void if, after having received the instrument in good condition, it is subjected to abuse, unauthorized alteration or casual repair. We will repair or replace products that prove to be defective during the warranty period. NO OTHER WARRANTY IS EXPRESSED OR IMPLIED. THE WARRANTY DESCRIBED IN THIS PARAGRAPH SHALL BE IN LIEU OF ANY OTHER WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. WE ARE NOT LIABLE FOR CONSEQUENTIAL DAMAGES.

Included Accessories

Direct Connection Cord
Direct connection lead clips, each with 15 feet of reach.

Ground Rod
Ground rod for near-end independent ground

Protective Carrying Case
A heavily padded protective case for equipment during transport and use.

• Weight: 8 lbs
• Dimensions: 10 × 10 × 28 in
