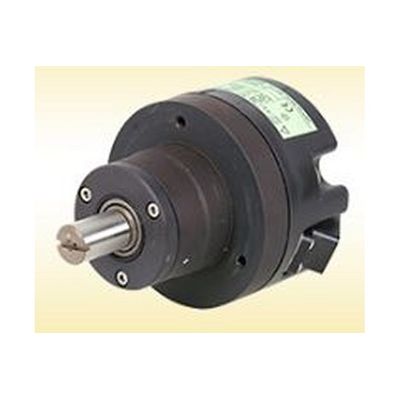

KINAX - Model WT707 -Transmitter for Angular Position

SHARE

Measuring transmitter with contactless, capacitive sensing system for acquiring the angular position of a shaft. A load-independent DC signal with a range of 4 to 20 mA is read out at the measurement output. Due to its rugged design, it is used primarily in machinery manufacturing and shipbuilding.

Most popular related searches
position sensor
explosive atmosphere
explosion protection
atmospheric monitoring
angular position transmitter
explosives measurement
  • Patented contactless capacitive system / wear-free
  • Analog measuring method, practically infinite resolution
  • Angle of rotation measuring range: 0.. 5 to 0.. 270° without gearbox 0.. 10° through 0.. 1600 revolutions with gearbox
  • Measurement output: 0.. 1 to 0/4.. 20 mA 2, 3 or 4-wire connection
  • Available with "intrinsically safe" explosion protection per Ex ia IIC T6, can be used in explosive atmospheres
  • Measuring span adjustment with potentiometer / optimized adaptation to desired measuring ranges
  • Output quantity characteristics: linear or as a characteristic V curve
  • Drive shaft can be infinitely rotated: no damage occurs even if the upper limit value of the measuring range is exceeded.
  • Surface mounting device in rugged housing: vibration and shock resistant, suitable for use in machinery manufacturing and shipbuilding
  • Available as GL variant (Germanischer Lloyd) / suitable for use on ocean-going vessels
