GenII - Model GD43E -Transmitters

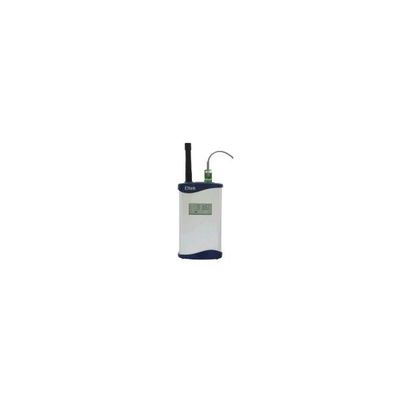

The GD43E transmitter is designed for users who wish to monitor temperature, temperature/humidity and an input from an external sensor e.g. CO2, O2 etc. When used with one of the Vaisala probes listed below, for example, the transmitter provides a compact, comprehensive and cost effective monitoring solution for incubators. The Vaisala CO2 sensors require an 24VDC external power supply in order to be used with the GD43E. The GD43 is battery operated with an endurance of > 2 years based on a 5 minute transmit interval. Connectors are included. If you require sensors, please order them separately.
Wired sockets for:
- 1 x voltage/current input (e.g. Vaisala GMP231 / GMP251 / GMP252 CO2 sensors)
- 1 x RHT10E RH/T probe
- 1 x thermistor temperature probe
GDM43E
The GenII M series retains the standard GenII transmitter specification and adds 12,000 readings of built-in backup memory. The memory is used in continuous overwrite mode. This means many weeks of data can be held in the transmitter, depending on the number of channels in use.
This kit enables fitment of the transmitter`s built-in wall bracket to difficult or uneven surfaces. The kit provides additional docking security.
The following products are supported:
- All GD, GC, GL and GS series transmitters
- RP250GD repeater and RC250 receiver
Common GenII Transmitter Specification
- RF specification: EN300-220
- RF power: 10mW
Environment specification
- Compliant to EN300-220: -10 to +55°C
- Actual: -30 to +65°C
- Humidity: 100% non condensing
- Environmental rating: IP40
- Dimensions (footprint): 78 x 41mm
- Transmission interval range: 1 sec to 4 hours
- Indicator (red LED): transmit active/on/off
- Control switch (concealed): test mode / hibernate
- Antenna socket: SMA
