Eltek Limited
Eltek GenII - Model GS42H & GS44H (A/B/C/D/E) -Transmitters for Heat Flux Monitoring
FromEltek Limited

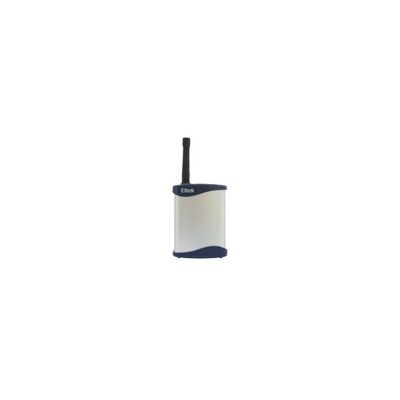

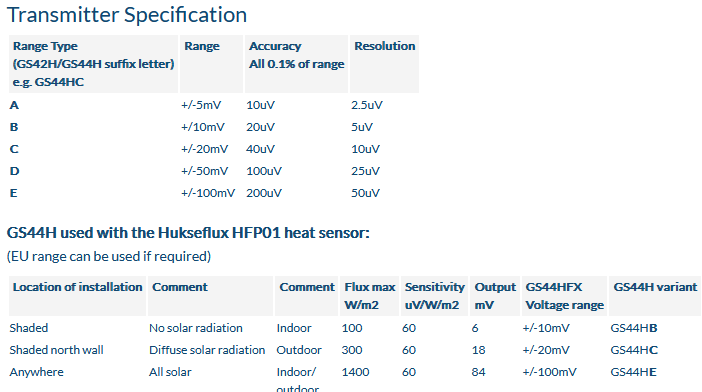

General purpose bipolar range transmitters that are designed to be used with the HukseFlux HFP01 heat flux plate. The GS42H has two inputs and the GS44H has four inputs; all inputs have the same range. This range is hardware configured at the time of manufacture. The transmitter will have a suffix letter corresponding to the range - see the specification section for more details.
Most popular related searches
Accessories
WBG Wall bracket docking kit
This kit enables fitment of the transmitter`s built-in wall bracket to difficult or uneven surfaces. The kit provides additional docking security.
The following products are supported:
- All GD, GC, GL and GS series transmitters
- RP250GD repeater and RC250 receiver
- RF specification: EN300-220
- RF power: 10mW
Environment specification
- Compliant to EN300-220: -10 to +55°C
- Actual: -30 to +65°C
- Humidity: 100% non condensing
- Environmental rating: IP40
- Dimensions (footprint): 78 x 41mm
- Approximate height: 178mm (110mm without aerial)
- Transmission interval range: 1 sec to 4 hours
- Indicator (red LED): transmit active/on/off
- Control switch (concealed): test mode / hibernate
- Antenna socket: SMA
