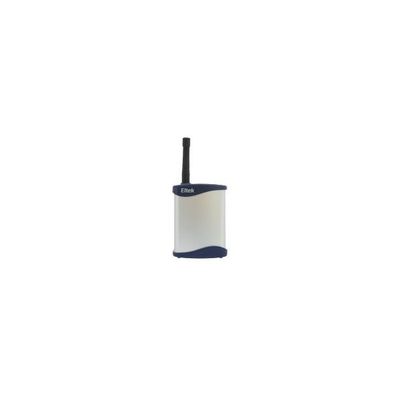

Eltek - Model 20 and 30 Series -Transmitters for Monitoring Digital State
FromEltek Limited

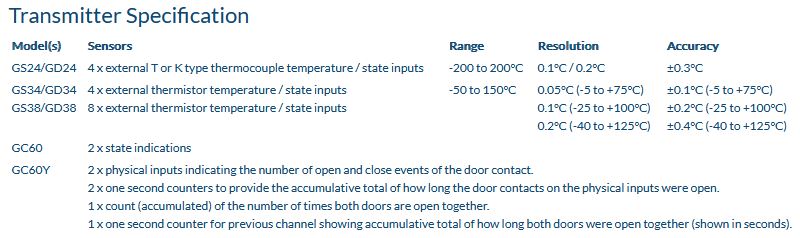

GS24 and GD24: 4 state inputs (or K/T thermocouples -200 to +200°C), e.g. door open/close. GS34/GS38 and GD34/GD38: 4 / 8 state inputs (or thermistor), e.g. door open/close.
Most popular related searches
Common GenII Transmitter Specification
- RF specification: EN300-220
- RF power: 10mW
Environment specification
- Compliant to EN300-220: -10 to +55°C
- Actual: -30 to +65°C
- Humidity: 100% non condensing
- Environmental rating: IP40
- Dimensions (footprint): 78 x 41mm
- Transmission interval range: 1 sec to 4 hours
- Indicator (red LED): transmit active/on/off
- Control switch (concealed): test mode / hibernate
- Antenna socket: SMA
