GenII - Model OD04 -Transmitters for Monitoring Outdoor RH and Temperature

SHARE

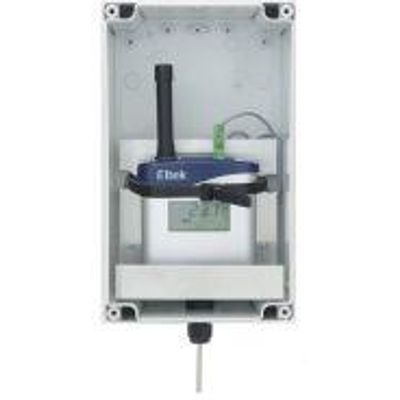

The OD04 is an IP65 rated polycarbonate enclosure with self powered GD04 transmitter and thermistor temperature probe. The enclosure is provided with 4 fixing holes that are obscured when the cover is fitted.

Most popular related searches
temperature probe
polycarbonate enclosure
environmental monitoring
thermistor probe
outdoor environmental monitoring
ambient environmental monitoring
humidity transmitter
environmental footprint
temperature monitoring

IP65 case

  • Dimensions (including screen):     Width:210mm x Height:345mm x Depth:95mm

  • RF specification: EN300-220
  • RF power: 10mW
  • Environment specification
    • Compliant to EN300-220: -10 to +55°C
    • Actual: -30 to +65°C
    • Humidity: 100% non condensing
    • Environmental rating: IP40
    • Dimensions (footprint): 78 x 41mm
    • Transmission interval range: 1 sec to 4 hours
    • Indicator (red LED): transmit active/on/off
    • Control switch (concealed): test mode / hibernate
    • Antenna socket: SMA
