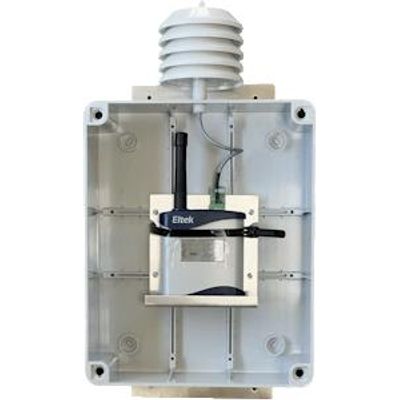

GenII - Model OD13E -Transmitters for Monitoring Outdoor RH and Temperature

• Stevenson screen
• RHT20E RH/T probe
• GD13Ecf (with display) - "cf" suffix denotes that the transmitter is conformally coated.

IP65 case

• Dimensions (including screen):     Width:210mm x Height:345mm x Depth:95mm

• RF specification: EN300-220
• RF power: 10mW
• Environment specification
• Compliant to EN300-220: -10 to +55°C
• Actual: -30 to +65°C
• Humidity: 100% non condensing
• Environmental rating: IP40
• Dimensions (footprint): 78 x 41mm
• Transmission interval range: 1 sec to 4 hours
• Indicator (red LED): transmit active/on/off
• Control switch (concealed): test mode / hibernate
• Antenna socket: SMA
