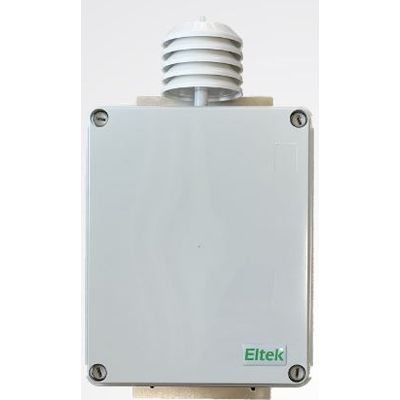

GenII - Model OD14E -Transmitters for Monitoring Outdoor RH and Temperature
FromEltek Limited
The OD14E is equipped with transmitter type GD14Ecf to provide an RH/temperature probe and additionally 2 thermistor temperature inputs.
Most popular related searches
conformal coating system
temperature probe
environmental monitoring
outdoor environmental monitoring
ambient environmental monitoring
humidity transmitter
environmental footprint
temperature monitoring
temperature transmitter
Wall mounting IP65 case with:
- Stevenson screen
- RHT20E RH/T probe
- 2 x temperature inputs
- Compression gland
- GD14Ecf (with display) - "cf" suffix denotes that the transmitter is conformally coated.
IP65 case
- Dimensions (including screen): Width:210mm x Height:345mm x Depth:95mm
- RF specification: EN300-220
- RF power: 10mW
- Environment specification
- Compliant to EN300-220: -10 to +55°C
- Actual: -30 to +65°C
- Humidity: 100% non condensing
- Environmental rating: IP40
- Dimensions (footprint): 78 x 41mm
- Transmission interval range: 1 sec to 4 hours
- Indicator (red LED): transmit active/on/off
- Control switch (concealed): test mode / hibernate
- Antenna socket: SMA
