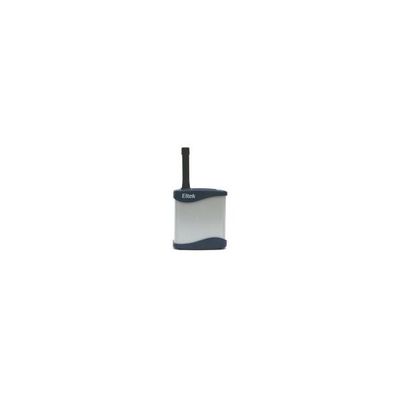

GenII - Model GC62 -Transmitters for People Counting

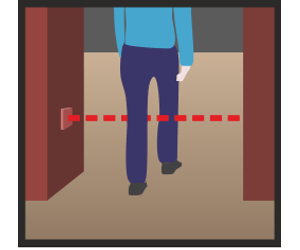

The GenII people counter system consists of the self powered GC62 transmitter to which the pulse output from a Velleman PEM7D can be connected. The PEM7D is a compact AC mains powered device that emits a continuous infrared beam. The sender and receiver are contained in a single compact enclosure that produces a pulse if the reflected beam is interrupted. The GC62 has two counter inputs.
Common GenII Transmitter Specification
- RF specificationEN300-220
- RF power10mW
Environment specification
- Compliant to EN300-220-10 to +55°C
- Actual-30 to +65°C
- Humidity100% non condensing
- Environmental ratingIP40
- Dimensions (footprint)78 x 41mm
- Transmission interval range1 sec to 4 hours
- Indicator (red LED)transmit active/on/off
- Control switch (concealed)test mode / hibernate
- Antenna socketSMA
Transmitter Specification
Each GC62 input increments the (pulse) counter by 1 at each high to low transition.
The PEM7D outputs a low (0V) when the beam is detected and high (9V) (person passing) when the beam is interrupted.
The GC62 counts to 65,535. When the maximum is reached the counter resets to zero and starts again. The logger detects the rollover and commences to add the new count value to the last, providing a continuous total value until the user forces a reset.
