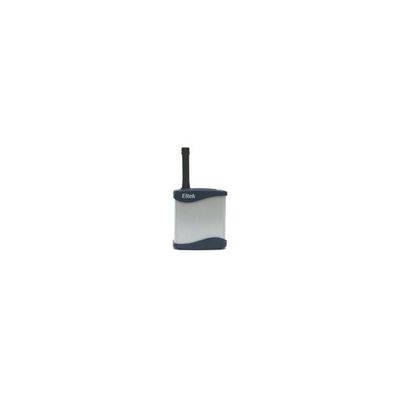

GenII - Model 00 Series GC06 / GD06 -Transmitters with Built-In Temperature / RH and Temperature Sensors

SHARE

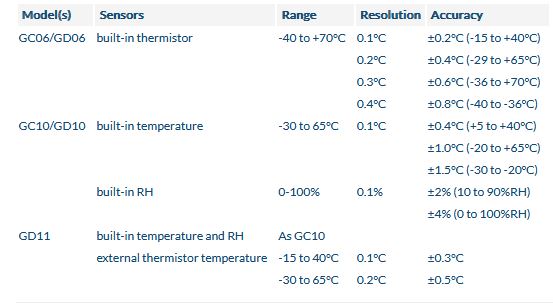

1 built-in thermistor temperature with measurement range -40 to +70°C. `D` Indicates LCD display.

Most popular related searches
environmental monitoring
temperature sensor
temperature monitoring
ambient environmental monitoring
humidity transmitter
environmental footprint
  • Specification: EN300-220
  • RF power: 10mW
  • Environment specification
    • Compliant to EN300-220: -10 to +55°C
    • Actual: -30 to +65°C
    • Humidity: 100% non condensing
    • Environmental rating: IP40
    • Dimensions (footprint): 78 x 41mm
    • Transmission interval range: 1 sec to 4 hours
    • Indicator (red LED): transmit active/on/off
    • Control switch (concealed): test mode / hibernate
    • Antenna socket: SMA
