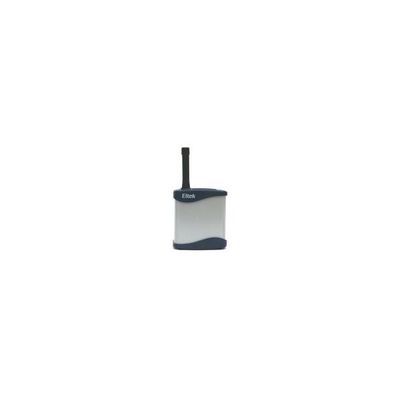

GenII - Model 00 Series GC04 / GD04 -Transmitters with Inputs

Common GenII Transmitter Specification

• RF specification: EN300-220
• RF power: 10mW

Environment specification

• Compliant to EN300-220: -10 to +55°C
• Actual: -30 to +65°C
• Humidity: 100% non condensing
• Environmental rating: IP40
• Dimensions (footprint): 78 x 41mm
• Transmission interval range: 1 sec to 4 hours
• Indicator (red LED): transmit active/on/off
• Control switch (concealed): test mode / hibernate
• Antenna socket: SMA
