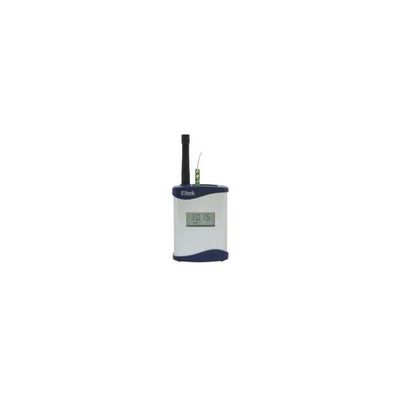

Eltek GenII - Model 30 Series - GS and GD31 / 2 / 4 / 8 -Transmitters with Inputs

GD32AL / 34AL / 32ALS with visual alarm

With visual alarm. High and low alarm levels, together with alarm delay time, can be set using Eltek Darca Software. `S` indicates visual and audible alarm.

GDM32 / GDM42 with backup memory

The GenII M series retains the standard GenII transmitter specification and adds 12,000 readings of built-in backup memory. The memory is used in continuous overwrite mode. This means many weeks of data can be held in the transmitter, depending on the number of channels in use.

Common GenII Transmitter Specification

• RF specification: EN300-220
• RF power: 10mW

Environment specification

• Compliant to EN300-220: -10 to +55°C
• Actual: -30 to +65°C
• Humidity: 100% non condensing
• Environmental rating: IP40
• Dimensions (footprint): 78 x 41mm
• Transmission interval range: 1 sec to 4 hours
• Indicator (red LED): transmit active/on/off
• Control switch (concealed): test mode / hibernate
• Antenna socket: SMA
