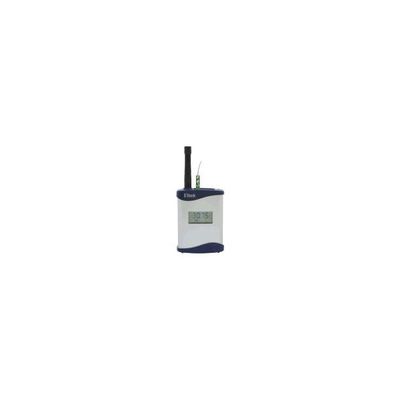

Eltek - Model 50 Series - GS / GD52 / GS / GD52H -Transmitters with Inputs for RTD (PT100) Temperature Sensors
FromEltek Limited
The GenII LM series retains the standard GenII transmitter specification and adds 50,000 readings of built-in backup memory. The memory is used in continuous overwrite mode. This means many weeks of data can be held in the transmitter, depending on the number of channels in use.
Most popular related searches
industrial temperature monitoring
industry temperature monitoring
Pt100 temperature sensor
temperature monitoring
temperature sensor
RTD temperature sensor
probes transmitter
temperature probe
temperature transmitter probe
RTD sensor
50 Series GS / GD52 / GS / GD52H
Wired sockets for 2 x 4 wire RTDs (-100 to +200°C).
`D` Indicates LCD display.
`H` indicates (0 to +300°C) range.
- Common GenII Transmitter Specification
- RF specification: EN300-220
- RF power: 10mW
- Environment specification
- Compliant to EN300-220: -10 to +55°C
- Actual: -30 to +65°C
- Humidity: 100% non condensing
- Environmental rating: IP40
- Dimensions (footprint): 78 x 41mm
- Transmission interval range: 1 sec to 4 hours
- Indicator (red LED): transmit active/on/off
- Control switch (concealed): test mode / hibernate
- Antenna socket: SMA
