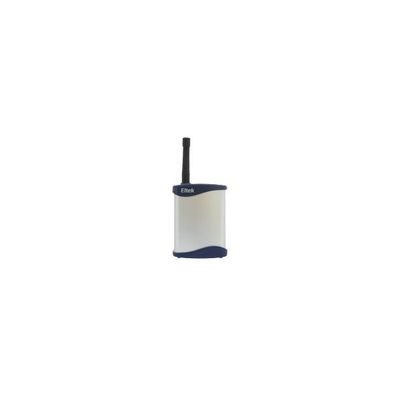

GenII - Model GS41Acf -Transmitters with Inputs for Solar Radiance
FromEltek Limited
The GS41Acf is a conformally coated GS41A transmitter. It provides one physical pyranometer input and two calculated channels.
Most popular related searches
- The physical input is for use with the Skye SKS1110 or Kipp and Zonen CMP3 pyranometer.
- The calculated channels are average value (5 minute rolling average with 30 second period) and cumulative value (i.e. to give Watt hours rather than Watts).
PyrBkt
Pole mounting bracket - a robust, pre-drilled stainless steel U bracket with securing nuts.
The following products are compatible:
- CMP3
- SKS1110
Common GenII Transmitter Specification
- RF specification: EN300-220
- RF power: 10mW
Environment specification
- Compliant to EN300-220: -10 to +55°C
- Actual: -30 to +65°C
- Humidity: 100% non condensing
- Environmental rating: IP40
- Dimensions (footprint): 78 x 41mm
- Transmission interval range: 1 sec to 4 hours
- Indicator (red LED): transmit active/on/off
- Control switch (concealed): test mode / hibernate
- Antenna socket: SMA
OD41 case
- Dimensions: Width:120mm x Height:202mm x Depth:85mm
