GenII - Model OD41A -Transmitters with Inputs for Solar Radiance

• Supplied with a GS41Acf transmitter installed.
• The transmitter can be installed together with an additional battery pack (type SP1118) for more than 2 years operation (or where very fast data logging is a requirement).
• The enclosure is provided with 4 fixing holes that are obscured when the cover is fitted.

PyrBkt

Pole mounting bracket - a robust, pre-drilled stainless steel U bracket with securing nuts.

The following products are compatible:

• CMP3
• SKS1110

Common GenII Transmitter Specification

• RF specification: EN300-220
• RF power: 10mW

Environment specification

• Compliant to EN300-220: -10 to +55°C
• Actual: -30 to +65°C
• Humidity: 100% non condensing
• Environmental rating: IP40
• Dimensions (footprint): 78 x 41mm
• Transmission interval range: 1 sec to 4 hours
• Indicator (red LED): transmit active/on/off
• Control switch (concealed): test mode / hibernate
• Antenna socket: SMA

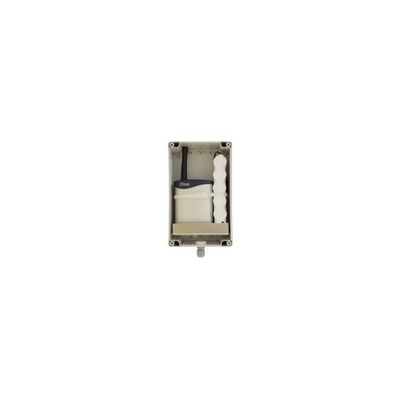

OD41 case

• Dimensions: Width:120mm x Height:202mm x Depth:85mm
