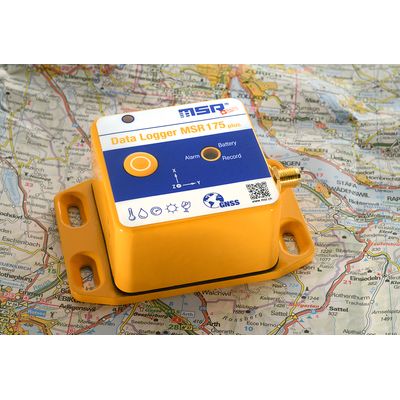

MSR Electronics - Model MSR175plus -Transportation Data Logger with GPS Tracking System

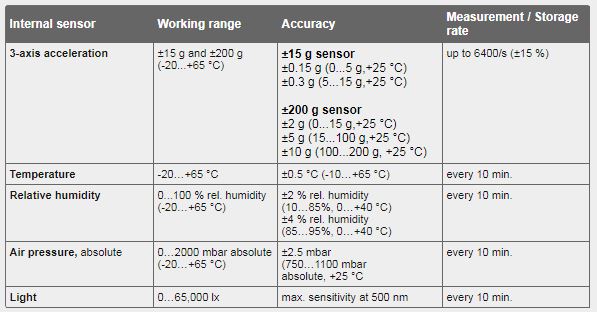

High-speed shock logger with 2 internal acceleration sensors (±15 g and ±200 g). Measurement frequency of up to 6,400 measurements/s. 3 measurement/storage intervals can be selected; setting of limit values. 1 internal temperature, humidity, pressure and light sensor each; measurement frequency/storage rate every 10 min. Installed memory is capable of storing over 2 million measured values. GPS/GNSS receiver. Rechargeable 2400 mAh lithium-polymer battery, recording time with activated GPS tracking up to 8 weeks, without GPS tracking at least 1 year. Removable battery. Coloured LED for status indication. MSR175 software package with Dashboard software for easy start-up of the data logger, MSR ReportGenerator for automatic report generation and MSR ShockViewer for detailed analysis of shock events.
- Memory capacity: Over 2,000,000 measurement values.
- GNSS position data: GPS (optional: GLONASS, Galileo, Beidou)
- Medium: Air
- Key: Start measurement/retrieve status/test GPS reception.
- Power supply: Lithium-polymer battery 2400 mAh, rechargeable via USB connection, recording time with activated GPS tracking up to 8 weeks, without GPS tracking at least 2 years
- Interface: USB
- Software package: MSR175 Dashboard software, MSR ReportGenerator, free MSR ShockViewer basic version. A fee-based MSR ShockViewer Pro Version will be available at a later stage. System requirements: Windows 7 or higher, USB port.
- Operating conditions:
- Temperature: -20…+65 °C
- Storage conditions:
- Temperature: Humidity: +5…+45 °C (ideal storage condition for the battery)
- 10…95 % relative humidity, non-condensing
- Standards: The MSR175plus complies with EU-Directives RoHS/WEEE.
Shock Data Logger MSR175plus with GPS-Tracking
Despite appropriate packaging and careful choice of means and routes of transport, freight is exposed to a variety of risks on its way to the customer. Excessively hard shocks and jolts during loading, reloading or unloading, excessively high temperatures or impermissible humidity levels are among the most frequent causes of damage. The MSR175plus data logger uses highly sensitive sensors to detect critical transport events and thus monitors all relevant transport specifications. In the event of damage, the documented measurement data can be used as evidence to clarify liability and insurance issues.
MSR175plus GPS data logger application examples:
- Determines transport stresses such as shocks, jolts, temperature, humidity, air pressure fluctuations and light incidence
- Monitors compliance with transport specifications
- Helps to optimise packaging
- Helps to optimise transport means and routes
