Evans Engineering EvaTip - Tray Hook Trailer for Heavy Load Management
The EvaTip Hook Trailer, a product of Evans Engineering, is a versatile solution engineered for efficient heavy load management. It features a detachable tray with a tipping mechanism, capable of handling loads up to 1800 kg. The internal tray dimensions are 2450 mm in length, 1420 mm in width, and 470 mm in depth, offering substantial capacity for various applications. This trailer is suitable for agricultural, construction, civil engineering, and household uses, serving as a reliable option for transporting heavy materials. Additional options include a motorized 12-volt hydraulic tipping unit, and customizable tray configurations such as caged or enclosed styles. The design accommodates diverse uses across sectors like waste management, roadworks, and general transportation needs. Variability in size and features makes it adaptable for specific requirements, ensuring enhanced performance and safety in load handling.
Get your own NZ designed and built EvaTip hook tailer so that your heavy load management gets easier and safer.
EvaTip Hook Trailer is the name given to this clever bit of Kiwi ingenuity.
The Evatip Hook Trailer started as one of many Evans Engineering projects to become a high in-demand product for commercial and domestic use. Clever design of our trailer hook allows a wide range of uses from using as an agricultural hook lift trailer and a hook trailer for construction or civil engineering to a household use as a boat hook trailer or a car hook trailer.

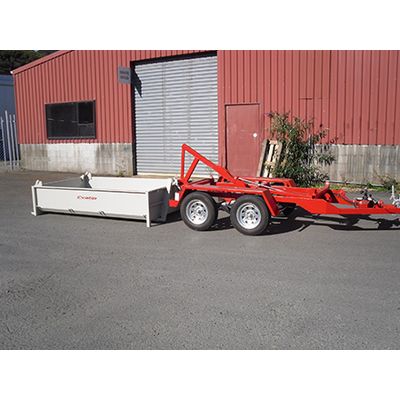

Just imagine that it can tip the tray, and also totally detach the tray from the trailer’s chassis. How handy is that?!
It is designed to carry heavy loads up to 1800KG with internal tray dimensions of 2450mm long by 1420mm wide and 470mm deep. That makes this hook trailer useful on the farm, for waste management, roadworks, on a construction site and even for household use.
Everywhere there is a heavy load, the EvaTip hook trailer is a must have for greater performance and safety.
EvaTip Optional Extras
Motorized 12-volt hydraulic tipping unit
Caged or enclosed tray options to suit with doors
Various sizes available made to order
EvaTip comes with a massive 15 essential and additional features
- Hook design to pick up and drop off trailer, simple and safe
- Hydraulic assist ram for tipping and removing tray
- Tandem axle for increased stability and better suspension
- Heavy duty draw bar
- Hydraulic disc brakes with Park brake
- Tie down loops on each side and inside of tray
- NZ standard 7 pin flat style plug
- NZ style coupling and safety chain
- Heavy gauge steel construction painted and fully welded
- Leaf springs because they are easier to replace
- Jockey Wheel – 4 x new 13″ rims with 165mm / 70mm tyre
- Spare wheel holding position on draw bar
- Hinged rear tailgate (removable)
- All steel tray for durability and easier maintenance
- Includes all wiring and lights required for WOF.
- Farming and Agricultural
- Construction or Engineering
- Earthworks
- Civil Engineering
- General home use as a boat trailer hook
- Franchise opportunity for waste collection
- Total overall Length of trailer 4000mm
- Total width of trailer external 1500mm
- Height of trailer to tray top from ground level 1170mm
- Internal length of tray 2450mm
- Internal width of tray 1420mm
- Internal depth of tray 470mm
- Trailer weight with tray/without tray 560KG/370KG
- Tow Bar coupling to suit 1 7/8” tow ball
- Load carrying capacity without tipping 1800KG
- Load carrying capacity with tipping 900KG
- Tandem axles with 13” rims fitted
Specifications are subject to change without notice. Contact your nearest distributor/ agent for up-to-date specifications prior to purchase.
