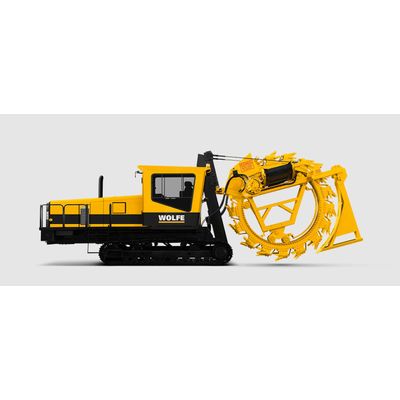

Wolfe - Model 8000/8000XD -Trench With Power

• 1.5" [3.8cm] thick wheel rims and buckets.
• Wider drive sprockets and wheel segments.
• Extreme duty lower rollers & upper trucks.
• 30" [76.2cm] - 36" [91.5cm] trench width.
• Heavy duty uprights and sliders, mast cylinder, and pivot assemblies.
• With the special tooth holders, it can be equipped with flat digging or carbide bullet teeth.

OPTIMAL MACHINE COOLING

• The machine cooling system is designed with variable speed reversing fans. The variable speed fans help reduce fuel consumption while the auto/manual reversing feature makes for easy cleaning when operating in dusty conditions.

FUEL EFFICIENT TECHNOLOGY

• Industry leading control systems reduce fuel consumption in the following ways;
• Load sensing pumps provide full power when needed. Pumps will dial back under low load situations to reduce wasted energy in the hydraulic system.
• Variable speed fans are controlled to run the at optimal cooling speed.
• Auto idle reduces engine RPM automatically when controls are in neutral for more than 3 seconds. Any operator input immediately returns engine RPM.
• Wolfe continually strives to utilize the newest fuel saving technology to reduce operating costs.

UNDER HOOD ACCESSIBILITY

• The hoods are designed with extra clearance when open for easy maintenance access to the engine and hydraulics.

BOOM LIFT (OPTION)

• The boom life provides a convenient method of installing pipe sections into the trench.

TRENCH BOX (OPTION)

• The trench box provides a protected working area behind the trenching wheel for installing pipe sections. This also allows for continuous lengths of pipe or cable products to be installed. Custom configurations available upon request.

7 DEGREE SIDE TILT (OPTION)

• The side tilt feature automatically or manually keeps the wheel vertical ensuring a precise grade on sloped terrain.

CARBIDE CUTTING TEETH (OPTION)

• Carbide cutting teeth are capable of cutting through frost & more abrasive soil conditions than standard teeth. Various sized wheel trenchers can be equipped with carbide teeth.

SIDE CUTTERS (OPTION)

• Side cutters increase the trench width by 6" [15.2cm] without changing the bucket system.

• 440HP CAT™ C-15 ENGINE
• Two-Speed Drive System
• 1st Max. 120 ft/min [2.2km/h]
• 2nd Max. 260 ft/min [4.75km/h]
• Proportional Hydraulics / load sensing pumps
• CAT™ 320 style 49 link tracks c/w 20" [70cm] street pads
• Dual or Single Stick Track Control System
• State-of-the-art Plus 1® Electronic Over Hydraulic Control System with complete machine monitoring, diagnostics, and feedback to protect your machine for the long term
• Side Mounted Cabs (Left or Right hand)
• A/C and Heated Cabs C/W digital climate control
• GPS and Laser compatible
• Engine Cooling System with auto/manual reversing fans
• Built-in Air Compressor
• Engine Block Heater
• Auto Idle
• Heavy Duty Components
• 1.25" [3.17cm] thick wheel rims
• Heavy duty bolt-on wheel segments
• Heavy duty heat treated buckets
• Heavy duty drop forged teeth
• Dual lower truck roller
• Rear upper truck roller
• Upper carrier truck roller (Head shaft support)
• Machine Weight Range: 52,500lbs - 70,000lbs [23,814kg - 32,000kg]

• 7 Degree TILT FRAME C/W AUTO SENSING
• BOOM LIFT
• EXTREME DUTY (XD) PACKAGE
• TRENCH BOX
• AUTO/MANUAL LUBE MANIFOLD
• CUSTOM COLOURS AVAILABLE
• Wolfe heavy duty 57 link tracks c/w 31.5" [80cm] single grouser pads
• Carbide Cutting Teeth
• Side Cutters
• Hydraulic Oil Pre-Heater
• Cable Tow System
• Cameras and View Monitors
• Exterior Light Package
• Auto Steer Ready
