Vermeer - Model RTX100 -Trencher With Optional Backfill Blade

• Adaptable to suit your jobsite conditions, with interchangeable tires or tracks.
• Fits into narrow spots with footprint that measures only 35”/88.9 cm wide.
• Steers effortlessly with the VZ steering system that requires only light pressure to the handle bars.
• Promotes on-the-job safety with an operator-presence system that disengages the trencher and ground drives if the operator leaves the controls, plus a trenching cleat that restricts backward motion.
• See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.

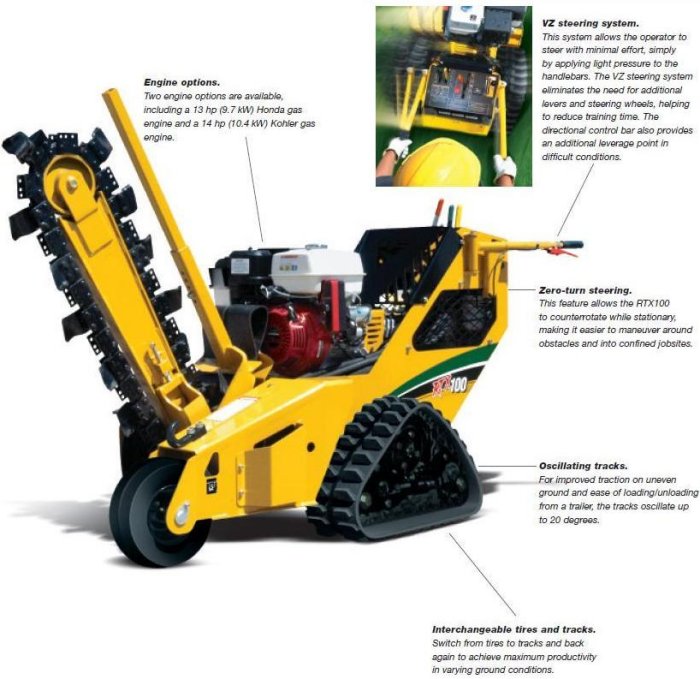

Walk-behind trenchers are ideal for a variety of projects, and now Vermeer has one that’s so easy to use it hardly seems like work. The RTX100 features our exclusive VZ steering system, which makes steering a breeze — even in the tightest of turns. With the RTX100, users can maneuver easily into confined jobsites and even counterrotate from a stationary position.

Equipped with interchangeable tires or tracks, the RTX100 offers a whole new level of flexibility and versatility for the jobsite. The rubber tracks enhance floatation and tractive effort when working in difficult ground conditions. Simply bolt on the rubber tires for optimal maneuverability.

The RTX100 offers the durability and rugged construction expected in Vermeer equipment, and its easy operation makes it a smart addition to any fleet.

General

Weight (basic tractor with tracks): 1090 lb (494.4 kg)
Weight (basic tractor with tires): 910 lb (412.8 kg)
Length (basic tractor): 81.4" (206.8 cm)
Width (basic tractor with tires): 35" (88.9 cm)
Width (basic tractor with tracks): 32.5" (82.6 cm)
Height (basic tractor with tires): 46" (116.8 cm)
Height (basic tractor with tracks): 46" (116.9 cm)
Wheelbase from centerline of axle: 34.2" (86.9 cm)
Tread width (tires): 8.5" (21.6 cm)
Track contact length: 19" (48.3 cm)
Track width: 7" (17.8 cm)

Capacities

Fuel tank: 1.6 gal (6.1 L)
Hydraulic tank: 12 gal (45.4 L)
Hydraulic system: 12.5 gal (47.3 L)
Engine oil: .3 gal (1.1 L)

Hydraulic system

Pump type: Tandem piston pump
Ground drive gpm @ max engine rpm: 5.4 gpm (20.4 L/min)
Attachment pump gpm @ max engine rpm: 8 gpm (30.3 L/min)

Ground drive

Ground drive type: Hydrostatic
Max forward transport speed at full throttle: 288 ft/min (87.8 m/min)
Max reverse transport speed at full throttle: 90 ft/min (27.4 m/min)
Steering type: VZ steering system

Trencher

Boom length: 24", 30" (61 cm, 76.2 cm)
Cutter width: 4" – 6" (10.2 cm – 15.2 cm)
Auger diameter: 16" (40.6 cm)
Auger outboard bearing support: Standard
Crumber: Optional
Restraint bar: Standard
* Engine operating angles do not indicate safe machine operating angles.
