Spartan Tool, LLC
Spartan UnderTaker - Trenchless Pipe Repair and Replacement System
This trenchless pipe repair and replacement system allows 2`-6` pipe replacement with up to three 45-degree bends in the pipe and can even upsize from 4` to 6` pipes.
Most popular related searches
trenchless pipe repair
trenchless pipe replacement
trenchless pipe
pipe repair
trenchless pipe repair system
pipe repair system
HDPE pipe
trenchless
mini robot excavator
pressure gauge
- Bursts 2" -- 6" pipes of virtually any material
- Replaces existing pipe with seamless HDPE pipe
- Can be operated with the auxiliary hydraulic system of your backhoe, skid steer, or mini excavator

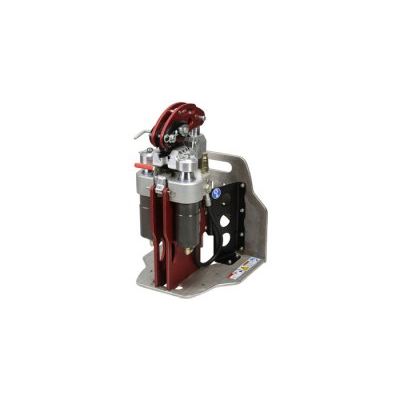

- Puller generates up to 30 tons of lateral pulling force through the wire rope to the bursting head
- Constructed of durable high grade anodized aluminum
- Customer length pulling ropes up to 200` are available
- Optional 2" and 3" bursting heads and fusion machine inserts are available
- The 4" to 6" fusion machine seats sections of four or six inch HDPE pipe in twin collars, allowing smooth trimming with the included circular cutting saw
- Operating power unit via a 25 foot long hand held pendant style remote control
- Power supply includes all the quick attach hydraulic connections required for the system and forty feet of hydraulic hose that allows maximum job site flexibility
- The quick grip bursting head is capable of breaking through pipes made from any common material: clay tile, cast iron, Orangeburg, PVC or ABS
- Pipe sizes: 4" and 6" standard; 2" and 3" options available
- Hose sizes: 2- 40` hydraulic hoses (from puller to power unit)
- Weight: 210 lbs. (3 separate components - no component weighs more than 70 lbs.)
- Power Supply: 13 H.P. Honda with electric start, supplying 3,000 PSI at 5 GPM
- Power Supply Dimensions: 26.5" L X 20" W X 27.5" H mounted on 10" pneumatic tires
- 5-gallon hydraulic reservoir
- Hydraulic tank sight gauge
- Low-engine-oil shut down
- Hour meter
- HTMA hydraulic couplings
- Flush mounted operating pressure gauge
- Hydraulic puller unit dimensions: 22" L X 22" W X 32.5" H
- Operates at 3 – 10 GPM hydraulic flow 200` duct rod with carrier (for inserting pulling rope) 4" and 6" fusion machine with pipe locking device and knurled locking handles
- Fusion Machine dimensions: 12"L X 13"W X 19"H
- Facing tool features a reversible drive drill with built in guide assembly capable of facing 4" and 6" pipe without changing cutting dies
- Facing Tool weighs 20 lbs.
- HDPE heating iron with safety storage bag assembly (adjustable temperature with temperature gauge) operates on 110 Volt service
