Flowtrans -Â Tri Lobe Pumps
Leveraging on our state-of-the-art infrastructural unit, we have been a prominent manufacturer of an extensive array of Tri-Lobe Pumps to our highly reputed clients. They are used at varied places to suit the requirements of customers. Fine quality raw material is obtained from our dependable vendors and processed using hi tech machinery at our unit for making these Tri-Lobe Pumps. They are hence known for their optimum quality, durability, finishing, corrosion resistance and compact design. This has gained us high rising demands for these pumps in the market.
- Price1000 Onwards INR/Piece
- Minimum Order Quantity1 Piece
- FOB PortMUNDRA
- Supply Ability1000 Piece Per Year
- Delivery Time1 Week
- Main Domestic MarketAll India

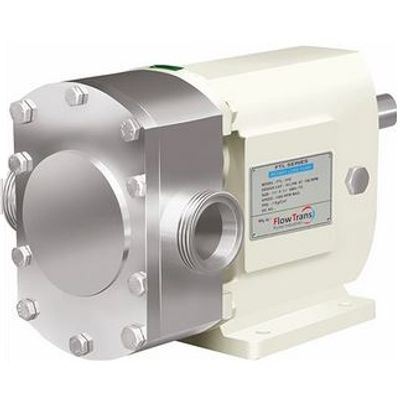

The FTL pump is a positive displacement rotary lobe pump of a sanitary design suitable for use in the dairies, food-processing, beverage, cosmetics, pharmaceutical and fine chemicals industries. This rotary lobe pump is perfect for managing all kinds of fluid, of either low or high viscosity, as well as for filtering and bottling applications. Products containing fragile solids such as junket can be pumped without damage thanks to the specially designed lobes.
Operating principleThe FTL rotary lobe pumps basically consist of two lobe rotors which rotate synchronously inside a casing without touching each other. As the rotors rotate, the spaces between the lobes and the casing are successively filled with the product, which is transported to the discharge nozzle with a fixed amount of displacement. The pumped fluid forms a continuous stream thanks to the tolerances between the lobes and the pump casing, thus ensuring an efficient pumping.
OverviewSize from 1" to 4", Capacity 1500 LPM max, Working Pressure 10KG/CM2,
