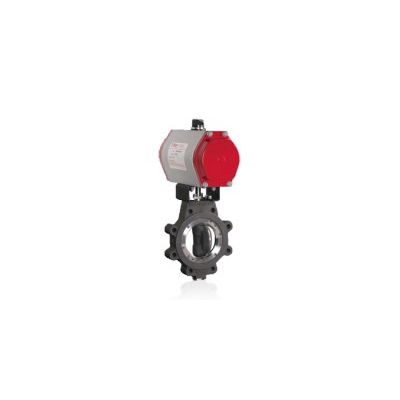

Tri Lock - Triple Offset Metal Seated Valve

Pressure Rating: ANSI Class 150, 300, 600 & 900 to full ASME B16.34 (PN 10 to 140). Inboard Body Hub & Bearing System: Minimizes stem bending and strain, prevents process debris ingress and maintains Body Seat / Disc Seal alignment. Splined Disc to Stem Connection: Assists Seat / Seal alignment, and eliminates hysteresis and external pins / taper pins. Bearing Seal: Eliminates media solids ingress.
