Triaxial -Â Borehole Geophone
The triaxial Borehole Geophone is lowered into a borehole to measure ground vibration in three planes: vertical, transverse and longitudinal. Vibrations from construction activities, blasting and other applications can travel through the ground and cause damage to underground structures. The Borehole Geophone can be lowered into a hole to monitor the effects of the vibration directly next to the structure without the need for regression analysis. Monitoring vibrations with an Instantel geophone can prevent any damage done to underground sewers, tunnels, gas lines or other structures.

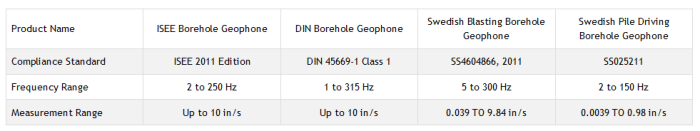

The Micromate Borehole Geophone is rugged and water resistant. The internal sensors are mounted in an aluminum case which is filled with epoxy to protect against contaminants commonly found in boreholes, like water, dust or dirt. The Micromate Borehole Geophone comes in two standard cable lengths: 30 meters (100 ft) and 75 meters (250 ft). The Borehole Geophone can also be custom built with up to 1000 meters of cable. It is compatible with any Micromate monitoring unit and can be calibrated to meet industry standards like the International Society of Explosive Engineers (ISEE), DIN, Swedish blasting or Swedish pile driving.
