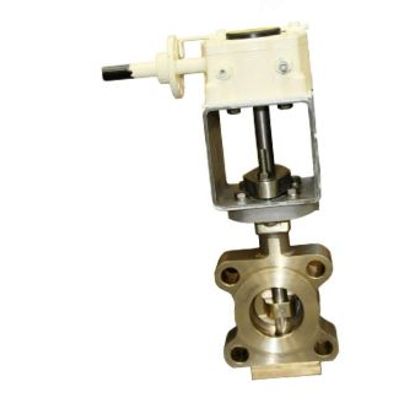

BAF - Triple Eccentric High Performance Valves
FromBAF Valves BV
BAF Triple eccentric High Performance Valves are designed to meet various applications in the waterworks, chemical, petrochemical, upstream storage and power industries. BAF design covers the latest international standards and can be supplied in a large variety to body and trim materials. Soft seated and metal seated available.
Most popular related searches
Design standards:
- ASHE B16.34
- API609
- EN 593
- API607S* Edition
Face to Face and end to end dimension conform to :
- API609
- EN- 593
Connections:
- End flange dimensions conform
- to ASME B16.5 / MSS-SP-44
- EN 593
Inspection and test in accordance with :
- API 598
- BS EN 12266-1
Pressure classes:
- ASME Class 150 / 300 / 600
- PN 10 / PN 16 / PN 25 / PN 40
- Design Triple eccentric to ensure fricbonless operating
- Flexible Laminated or solid seal with circular conical construction
- Size range DN 50/ NPS 2" till DN 1800 / NPS 72"
- Fire safe to the latest standard API 607 5^ edition
- Zero leakage to API 598 for resilient valves.
- BAF Triple eccentric metal seated high performance valve requires a very accurate final position of the disc in order
- to secure 100% tight shut off, therefore BAF recommends that the valves to be minimum gearbox operated.
- Temperature range up to 560°C
- Suitable for vacuum service.
- Large veriaty of body and trim materials.
- Various body styles in wafer, lug and double flanged.
- Blowout proof stem design.
- Double upper bearing to minimize shaft bending.
- Replaceable body seat and disc seatring
- Bi-directional thight shut-off
