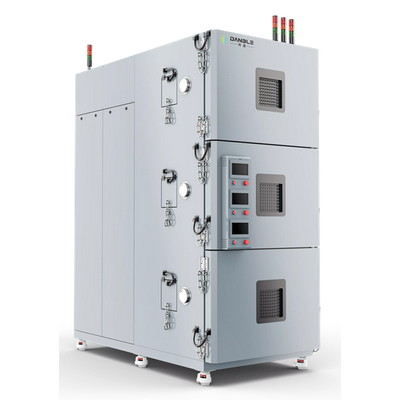

Danble - Model DBT3-B390 -Triple-Layer High & Low Temperature Test Chamber
Triple-Zone Thermal Simulation Chamber: Advanced Multi-Scenario Testing. Our triple-layer chamber simulates harsh thermal environments (-70°C to +180°C) with independent control for each zone. Designed for accelerated aging tests, thermal shock validation, and compliance with IEC 60068-2-1/GB/T 2423.
-
Temperature Range: -70°C to +180°C (adjustable in 1°C increments)
-
Zones: 3 independently controlled chambers (A/B/C)
-
Chamber Material: SUS304 stainless steel (internal), powder-coated steel (external)
-
Control System: PLC + 10-inch touchscreen with data logging & multi-language support
-
Cooling System: Cascade refrigeration (R404A/CO₂ optional)
-
Multi-Zone Synchronization: Simultaneous testing across three temperature zones
-
Rapid Transition: Achieves -70°C in ≤45 mins & +180°C in ≤25 mins
-
Safety Protocols: Over-temperature shutdown, leak detection, and emergency stop
-
Battery Testing: Validate thermal management of EV battery packs (e.g., thermal runaway prevention)
-
Automotive: Test HVAC systems, electrical components under extreme conditions
-
Electronics: Accelerated life testing for PCBs, semiconductors, and connectors
-
Aerospace: Assess material durability in rapid temperature cycling
