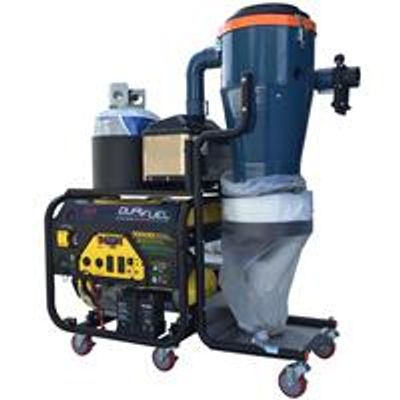

Draygon - Model SC2 TP -Triple Power Industrial Vacuum Single Phase Dust Extractor
The SC2TP is a triple powered (electric, propane or gas) dust extractor that can tackle up to 400 m3/h, allowing the user to work without unnecessary interruptions. The SC2TP is not just powerful, robust and effective but also versatile. It can handle all kinds of fine dusts and materials created on a construction site from cutting concrete, sanding, grinding or drilling floors or walls, as well as dust from many other industrial factory processes. The machine can be connected to floor grinders and handheld tools like cutting machines, chisel hammers and saws – and can even provide the power source for those tools.
The SC2TP comes complete with an 10,000W, 499cc, 4 stroke OHV engine generator. The generator provides an alternative power source when a reliable electrical source is unavailable. When propane or gasoline is used, the SC2TP has the capability to power a grinder or hand tools in addition to the vacuum.
As a standard the SC2TP is equipped with a patented self-cleaning filter (washable polyester) and a HEPA H13-filter built to be Application Class H. A signal lamp shows when it`s time to clean the filter.
The SC2TP delivery package includes:
- 25 ft., 2.5" hose
- a chrome steel wand and a strong aluminum floor tool
- Longopac plastic sack, 70 ft.
- puncture proof wheels of ”non marking-type” - can be locked to make it possible for the user to work on uneven ground.
- H x W x L (Inches): 54”x29”x55”
- Weight: 315 Lbs.
- Inlet: 2.5”
- Collection: Longopac System
- Flow at open inlet: 115V 268 cfm
- Inches of Water Column: 120
- Negative pressure: max 115V 21 kPa /84 inwg
- Power consumption: 115V 10,000W
- Filtration: HEPA
- Sound level: 70 dB(A)
