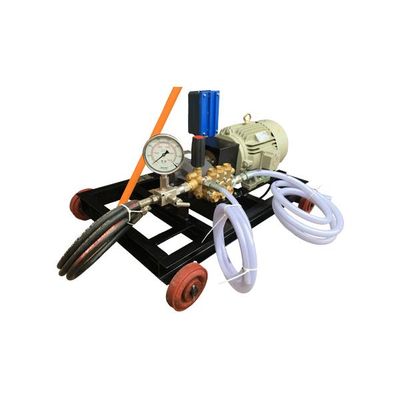

Ambica - Model JHP 200 Series -Triplex Plunger Pump

FromAmbica Machine Tools

SHARE

Triplex plunger pumps are low maintenance solutions for high – pressure application such as hydro testing, car washes and jetting application. This pump is excellent for testing leakage and integrity from Boiler, Pressure Vessels, Metal Casting, Gas Cylinder, Pipes & Tubes Part. Triplex Plunger Pump are supply with different metals like brass, forged stainless steel 304, stainless steel 316, duplex steel, nickel bronze aluminum bronze etc.Ambica Machine Tools is a pioneer plunger pump manufacturer in India providing superior-grade solutions to a global clientele base since its foundation.

Most popular related searches

triplex plunger pump

stainless steel pump

stainless steel strainer

gas cylinder storage

industrial pump

Boilers, pressure vessels, c.i. Mains, casting parts
Gas cylinder, pipes & tubes parts
Subject to hydro test pressure

Electric motorized driven system
Heavy duty precision gear box
Totally enclosed drive mechanism.
Self oiling system quick acting relief valve.
Brass unloaded valve with inlet bypass
Adjustable pressure regulator
Trolley mounted pump unit.

Pressure release cock made from brass metal
Pump head made from brass material.
Crank case made from aluminum material.
Discharge pressure hose with attachment of ½” bsp length 2 mtrs.
Stainless steel glycerin filled pressure gauge with 4″ inch dial (with calibration certificate )
Discharge valve (NRV) made from stainless steel material.
Pump pulley made from c.i / aluminum material
Pressure set valve made from stainless steel material
Pump plunger made from ceramic material
Pump stand made from mild steel 3″ x 11/2 ” c channel
3 mtrs inlet hosr with stainless steel strainer
Pump trolley with four wheels
Suitable electrice motor starter supple with pump (C & S control penal / DOL starter)

Max Pressure: Up to 350 kg/cm2
Max flow: 21 LPM
Max motor / Engine HP: 20
