Trojan - Model UV3000PTP -Wastewater Treatment System

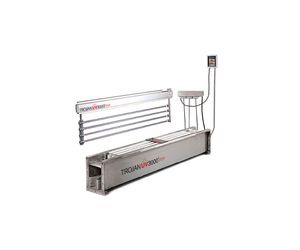

Our smallest wastewater system in terms of flow-handling, the TrojanUV3000™PTP is ideally suited to treat flows up to 2.8 MGD (441.6 m3/hr). The TrojanUV3000™PTP can be equipped with pre-fabricated stainless steel channels and transition boxes for in-line integration with existing flanged piping – thus minimizing engineering and installation costs. It can be easily retrofitted into existing chlorine contact tanks and effluent channels, and come pre-tested, pre-assembled and pre-wired to minimize installation costs. Using Trojan’s most proven, modular design and robust components, including low-pressure lamps, these systems are straightforward to operate and require minimal operator involvement.

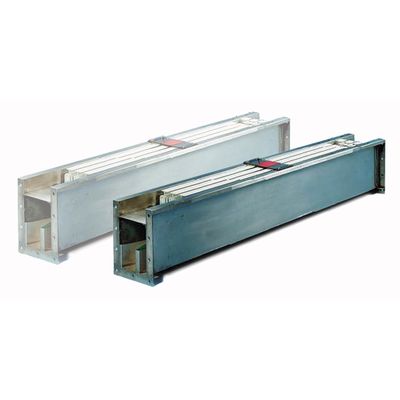

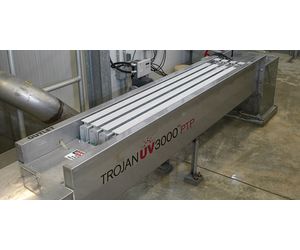

The TrojanUV3000PTP can be installed into existing chlorine contact tanks and effluent channels. It comes pre-tested, pre-assembled and pre-wired to minimize installation costs, and can also be equipped with prefabricated stainless-steel channels with built-in weirs. Channels are easily integrated with existing flanged piping using transition boxes.

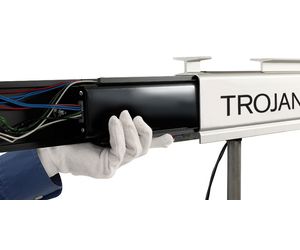

Space-saving electronic lamp drivers are housed right in the modules, not in separate external cabinets – this minimizes the footprint of the UV system and eliminates the need for air-conditioning. Lamp drivers are cooled by convection and each UV module includes a UV lamp status indicator for at-a-glance monitoring.

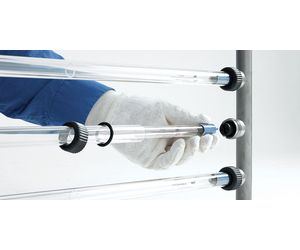

Modules are lightweight and can be individually removed for periodic sleeve cleaning and lamp change-outs. An optional mobile cleaning rack simplifies maintenance procedures.
The TrojanUV3000PTP has been validated through microbial testing. Through this testing, performance data has been generated for UV dose delivery to inactivate microorganisms Escherichia coli (E. coli ) and fecal coliform.
Is your wastewater treatment plant's flow rate 3 to 5 MGD? If so, the TrojanUV3000®B is another option you should consider.
