Trojan - TrojanUV3000Plus

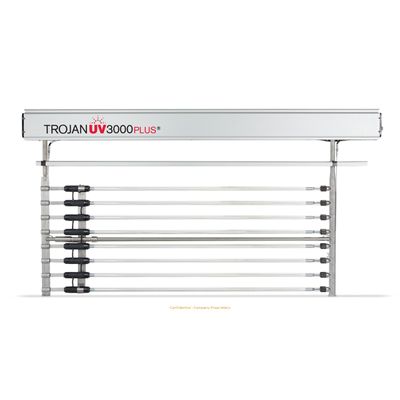

Trojan's hallmark wastewater treatment platform. This highly flexible system has demonstrated its effective, reliable performance around the world. It features Trojan’s patented ActiClean chemical/mechanical cleaning system to minimize maintenance. It is well suited to wastewater treatment applications with a wide range of flow rates, as well as challenging effluent (primary and combined sewer overflows) and high level disinfection such as tertiary wastewater reclamation and reuse.

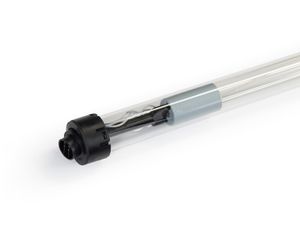

The Integra lamp assembly is designed to make lamp replacement more safe and efficient with lamps and protective quartz sleeves nor preassembled and factory sealed together as a single unit. Other critical lamp components such as o-rings and seals which prevent water from entering the assembly are also permanently built-in. This evolution in UV lamps significantly minimizes the risk of lamp and breaks and mercury spills during maintenance and reduces the number of spare parts needed to inventory.
The patented ActiClean® system helps maintain at least 95% UV transmittance, ensuring consistent and optimal UV output. Operators need not worry about manually cleaning, as all quartz sleeves and intensity sensors are cleaned automatically, without disrupting treatment

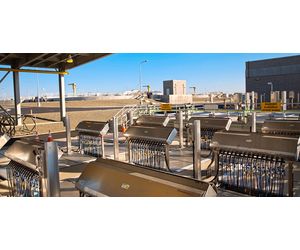

Modular, compact design allows cost-effective installation into existing effluent channels and chlorine contact chambers. When the time comes to meet new regulations and increase flow capacity, simply add more banks. What’s more – the entire system can be installed outdoors to reduce capital costs, no building, shelter or HVAC required.
UV lamps can be easily and quickly replaced without tools, and an intuitive quick connect makes refilling the ActiClean Gel fast and simple. And thanks to the system’s modularity, routine maintenance can be performed on one module without disrupting treatment performance.

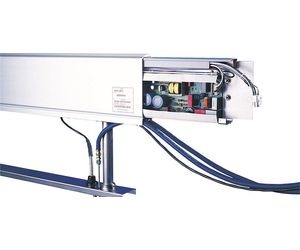

Module-mounted lamp drivers allow for compact installation, convection cooling and protect wires and cables from exposure to effluent and UV light. They are housed right in the module, reducing system footprint, minimizing installation time and costs and eliminating the need for separate external cabinets.
