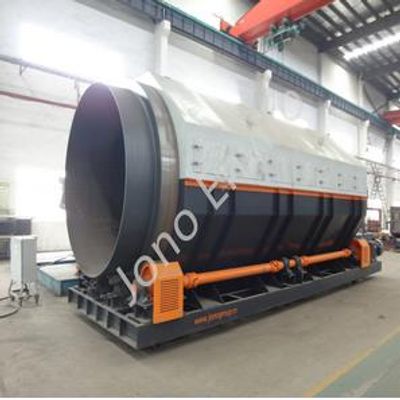

JONO - Trommel Drum Screen Separator for Waste Recycling Plant
Trommel screen is designed to effectively separate MSW, organic waste, recyclable waste, stale waste and kitchen waste by different drum screen sizes to optimize the material for the subsequent processing. JONO trommel screen can clean itself while working as it rotates,which maximize the separating efficiency and lessen the maintenance work.The high efficiency and the high quality will highly profit you in a long run time.
- After-sales Service: Instruction for Commissioning and Maintenance
- Warranty: 1 Year
- Condition: New
- Certification: ISO, CE, SGS
- Automation: Automatic
- Screw: Multi-Screw
- Customization: Available
Basic Info.
- Model NO.: Trommel Seperator
- Treatment: mechanical sorting
- Lead Time: 1-3 Month
- Customize: Welcome
- Color: White/Orange/Customize
- MOQ: 1 set
- Throughput: 10-150m3/h
- Drum Length: 3-12m
- Screening Size: <=1000mm
- Screening Rate: 80%-95%
- Transport Package: Container
- Specification: Trommel Screen
- Trademark: Jono
- Origin: Jiangsu, China
- HS Code: 8464909000
- Production Capacity: 10/Month
Trommel is installed in a small angel with the input end a little higher than the output end.After having entered into the drum,the material moves along with the drum`s rotation.During the rotation and the moving forward,the small sized material drops through the screen holes,the big sized material will be discharged at the discharging chute at the end.This rotation can make sure the material go through enough holes to greatly optimize the separation effect.
- Drum diameter size: Φ0.8-φ3m (can be customized)
- Drum length: 3-12m
- Drive unit: Gear motor 7.5-74kw
- Drum speed: 10-23r/min
- Ambient temperature: 0ºC- +45ºC
- Voltage: 3×380V±5%/50 Hz
- Control cabinet: Detached(can be integrated)
- Power control: Frequency converter
- Screen unit: Φ5-φ350mm (can be customized)
- Screening rate: 80%-95%
- Input size: ≤1000mm
- Throughput: 10-150m³/h (depending on the material and screen size)
