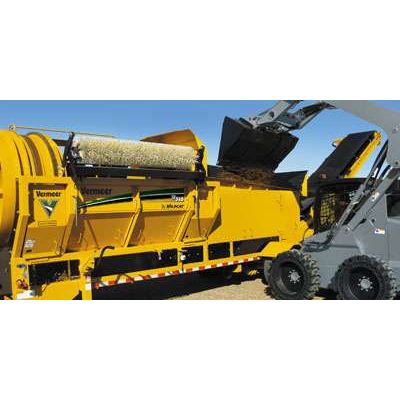

Vermeer - Model TR510 -Trommel Screen
Produce consistent, top-dollar compost even on smaller sites with the TR510. Compact design and pintle hitch make it easy to tow behind a 2-ton dump truck. Efficient 49 hp/36.5 kw John Deere PE 4024T Tier 3 engine is paired with a 5’/1.50 m drum and 5 cubic yards/3.82 cubic meter hopper for efficiency. Access the drum through removable side panels, drum end or top of the drum for added convenience.
- Enhance worker safety with startup delay and alarm systems that notify workers when the machine is about to start.
- Move material smoothly without bridging, thanks to a tall, wide throat opening.
- Keep screen weights low when processing wet materials by clamping on a smaller diameter tension screen wire and increasing screening area.
- Speed up your clean up because the flashing and sheeting fit tightly against the drum and conveyors to reduce spillage.
The TR510 by Wildcat is a self-contained, portable screening plant designed for the organic and wood-waste industries and is ideal for composting, recycling or topsoil reclamation. With its 49-hp (36.5 kW) engine, 5`-diameter (1.5 m) drum and 5-cu-yd (3.8 m3) hopper, the TR510 can produce up to 65 cu yd (49.7 m3) of consistent, quality material per hour with minimal spillage.
The hopper is not only one of the largest in its class, but its low infeed height decreases loading cycles and eliminates the need for loading ramps with most loaders. The hopper’s steep sidewalls and large throat opening helps keep material from bridging.
General Dimensions
Weight: 23,000 lb (10,433.6 kg)
Hitch weight: 5700 lb (2585.5 kg) (weights will vary with options)
Length (transport): 29.3` (8.9 m)
Width (transport): 92" (233.7 cm)
Height (transport): 13.4` (4.1 m)
Length (operational): 50` (15.2 m)
Width (operational): 92" (233.7 cm)
Height (operational): 11.3` (3.4 m)
Capacity
65 cu yd (49.7 m3) per hr with .5" (1.3 cm) screens installed and material with moisture less than 40%
Engine
Make and model: John Deere PE 4024T Tier 3
Cylinders: 4
Engine rating: 49 hp (36.5 kW) @ 2800 rpm 129 ft-lb (174.9 Nm) of torque @ 1500 rpm
Fuel consumption: 2.4 gph (9.1 L/h) under most operating conditions
Hopper and Apron Conveyor
Hopper capacity: 5 cu yd (3.8 m3)
Hopper height: 6.8` (2.1 m) from ground level at operating incline
Apron conveyor impact rollers: 4" diameter (10.2 cm) (8)
Screen Drum
Diameter: 5` (1.5 m)
Length: 11` (3.4 m)
Fines Conveyor
Conveyor belt width: 36" (91.4 cm)
Conveyor belt type: 220 lb (99.8 kg), 2-ply, 3/16" x 1/16" (4.8 mm x 1.6 mm)
Conveyor belt stacking height: 13` (4 m)
Overs Conveyor
Max variable overs belt speed: 144 fpm (43.9 m/min)
Conveyor belt width: 36" (91.4 cm) wide with raised crescent
Conveyor belt type: 220 lb (99.8 kg), 2-ply, 3/16" x 1/16" (4.8 mm x 1.6 mm)
Conveyor belt stacking height: 3` – 10` (.9 m – 3 m)
Production rates will vary with moisture content, maintenance, operator experience, site preparation among other factors.
