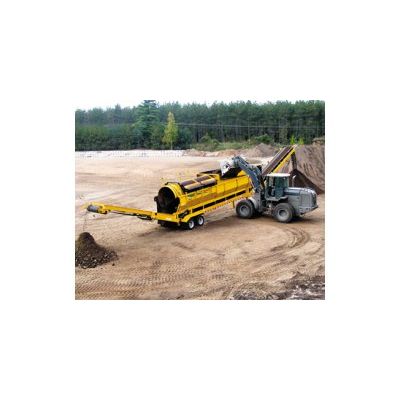

Vermeer - Model TR516 -Trommel Screen
Produce consistent results when you process material on the TR516. Heavy duty 66 hp/49 kw John Deere PE 4024T Tier 3 engine is paired with a 5’/1.50 m drum and 5 cubic yards/3.82 cubic meter hopper for efficiency. 20’/ 6.1 m conveyor improves aeration. Access the drum through removable side panels, drum end or top of the drum for added convenience.
- Enhance worker safety with startup delay and alarm systems that notify your whole crew when the machine is about to start.
- Move material smoothly without bridging, thanks to a tall, wide throat opening.
- Extend belt life even under tough loading conditions with closely set, heavy-duty rollers supporting the apron conveyor.
- Keep screen weights low when processing wet materials by clamping on a smaller diameter tension screen wire and increasing screening area.
- Speed up your clean up because the flashing and sheeting fit tightly against the drum and conveyors to reduce spillage.
- See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.
Built for optimal screening efficiency, the TR516 by Wildcat is an outstanding performer for composting, recycling or topsoil reclamation. The TR516 boasts a 66-hp (49.2 kW) engine, along with a 5`-diameter (1.5 m) drum and 5 cu yd (3.8 m3) hopper. Combine these with .5" (1.3 cm) screens and material moisture content below 40 percent, and the TR516 can produce up to 100 cu yd (76.5 m3) of material per hour.
As with our other units, the TR516 features the largest hopper in its class, standard impact idlers and tensioned screens for added strength, user-friendly controls, and shielding for minimal spillage.
General Dimensions
Weight: 33,980 lb (15,413.1 kg)
Hitch weight: 15,800 lb (7,166.8 kg), (weights will vary with options)
Length (transport): 38` (11.6 m)
Width (transport): 102" (259.1 cm)
Height (transport): 13.4` (4.1 m)
Length (operational): 78.3` (23.9 m)
Width (operational): 102" (259.1 cm)
Height (operational): 15.9` (4.9 m)
Capacity
100 cu yd (76.5 m3) per hr with .5" (1.3 cm) screens installed and material with moisture less than 40%
Engine
Make and model: John Deere PE 4024T Tier 3
Cylinders: 4
Engine rating: 66 hp (49.2 kW) @ 2800 rpm 163 ft-lb, (221 Nm) of torque @ 1600 rpm
Fuel consumption: 2.4 gph (9.1 L/h) under most, operating conditions
Hopper and Apron Conveyor
Hopper capacity: 5 cu yd (3.8 m3)
Hopper height: 9.5` (2.9 m) from ground level at operating incline
Apron conveyor impact rollers: 6" diameter, (15.2 cm) (13)
Screen Drum
Diameter: 5` (1.5 m)
Length: 15` (4.6 m)
Fines Conveyor
Conveyor belt width: 36" (91.4 cm)
Conveyor belt type: 220 lb (99.8 kg), 2-ply, 3/16" x 1/16" (4.8 mm x 1.6 mm)
Conveyor belt stacking height: 14.5` (4.4 m) with drum at 4°
Overs Conveyor
Max variable overs belt speed: 111 fpm (33.8 m/min)
Conveyor belt width: 36" (91.4 cm) wide with raised crescent
Conveyor belt type: 220 lb (99.8 kg), 2-ply, 3/16" x 1/16" (4.8 mm x 1.6 mm)
Conveyor belt stacking height: 3` – 11` (.9 m – 3.4 m)
Production rates will vary with moisture content, maintenance, operator experience, site preparation among other factors.
