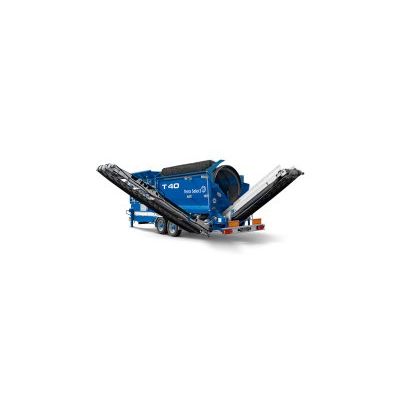

Terra Select - Model T 40 -Trommel Screen
FromEggersmann GmbH
For the model T 40, Terra Select compressed the technical advantages of the “big machines” and transferred them into a smaller machine. As a result, it also contains the special hopper drive, a powerful diesel motor, hot dip galvanised conveyor belt frame, generous transfer points and wide conveyor belts. The T 40 is a powerful professional machine from the compact class, almost reaching the models from the five metre class, and all of this with an excellent price/value ratio.
Most popular related searches
trommel screen
trommel screener
conveyor belt
mobile trommel screen
mobile screening system
screening system
belt conveyor
mobile screen
belt screen
- The Terra Select T 40 is designed for all types of materials. It can also screen substances like earth, soil, sand, building rubble, etc. without any difficulties.
- The T 40 is a powerful machine with compact dimensions due to its high quality equipment, its well-conceived execution and its 1,600 mm trommel diameter.
Special features: powerful hopper belt drive, 19 m2 screening area, wide conveyor belts
- Trommel length : 4,200 mm
- Trommel diameter : 1,600 mm
- Effective screening area : 19 m²
- Drive : 55 kW
- Tank volume : 160 litres
- Fine grain belt length : 3,400/4,900 mm
- Fine grain belt width : 800 mm
- Oversize grain belt length : 3,400/4,900 mm
- Oversize grain belt width : 800 mm
- Hopper : > 3.4 m³
- Width : 3,150 mm
- Depth : 1,550 mm
- Approved total weight : 12,000 kg
