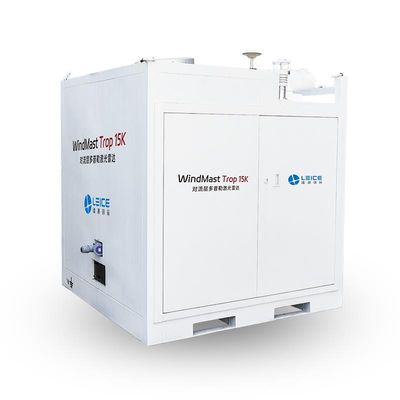

Leice - Model WindMast Trop 15K -Tropospheric Direct Detection Doppler Lidar
A fully automated, electromagnetic interference-free lidar that can directly detect three-dimensional wind field data at the top of the troposphere. It takes into account the Doppler effect of atmospheric molecules and aerosols, enabling real-time detection of atmospheric wind profiles, three-dimensional wind fields, temperature profiles, and the optical properties of clouds and aerosols. The entire system is designed as a compact square cabin and can be mounted on various mobile platforms.
Most popular related searches
wind speed monitoring
atmosphere wind profiling
wind profiling
temperature profiling
wind monitoring
field data
meteorology system
tropospheric
doppler LiDAR
LiDAR
- Multi-parameter detection capability
- Multiple scanning modes
- High spectral resolution
- Flexible deployment
- Laser Wavelength: 532nm/355nm
- Maximum Detection Distance: 12km
- Spatial Resolution: 10m~300m: 10m, 300m~6km: 30m, >6km: 60m
- Radial Wind Speed Measurement Range: ±75m/s below 3km, ±100m/s above 3km
- Wind Speed Measurement Accuracy : ≤ 1 m/s
- Wind Direction Measurement Accuracy : ≤ 5°
Wind profile, optical properties of clouds and aerosols, radial wind speed PPI/RHI/CAPPI, temperature profile (expandable).
