- Plenum box made of galvanised sheet steel with plastic spigot and equalising element made of polyester fleece
- Mounting aid for faster and tool-free assembly of the diffuser face
- 3 suspension lugs for fixing, alternatively a central single-point suspension can be used
- For all types of ceiling systems
- Equalising element for optimum and therefore quieter flow through the diffuser face with supply air
- For comfort zones and industrial zones
- Very airtight casing
Optional equipment and accessories
- Spigot with damper unit for volume flow rate balancing and lip seal
- Internal lining
- Powder coating, RAL CLASSIC colour
Volume flow rate balancing/commissioning
When several diffusers are connected to just one volume flow controller, it may be necessary to balance the volume flow rates.
- Circular plenum boxes with damper unit and lip seal (-DS) have a damper unit that can be adjusted in 15° steps
- Adjustment is via a manual lever which is freely accessible when the diffuser face is removed
- Adjustment range is 0° - 90° in 15° steps
- Plenum boxes are used to connect air terminal devices to circular ducts and to fix the diffuser face.
- Type AKR plenum boxes are fitted with an equalising element (for supply air) that ensures an even airflow through the diffuser face.
- Depending on the diffuser face, lower sound power levels are achieved due to the improved airflow.
- The spigot with optionally available damper unit and lip seal simplifies the volume flow rate balancing for commissioning.

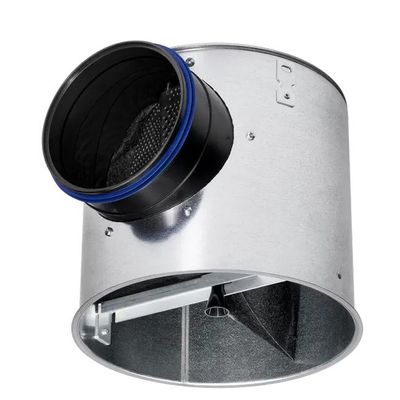

Type AKR circular plenum boxes for the connection of diffuser faces to circular ducts, suitable for supply air or extract air applications. Supply air plenum boxes are fitted with an equalising element that ensures an even airflow through the diffuser face. The ready-to-install component consisting of the plenum box, the horizontally arranged spigot, with equalising element for supply air, cross bar including quick-fit kit for fixing the diffuser face into place. The diffuser face is fixed to the cross bar by means of a central fixing screw, and the diffuser face can be installed without tools. Spigot suitable for ducts according to EN 1506 or EN 13180.
Special features
- Fast and tool-free assembly of the diffuser face thanks to the integrated assembly aid
- Shorter assembly time due to the reduction to 3 fixing points, central suspension with a threaded rod can be performed by others
- Very airtight casing
- Easily accessible, therefore easy to clean and no "dirt corners" exist
Materials and surfaces
- Casing, cross bar and fixing tab made of galvanised sheet steel
- Spigot and mounting aid for central screw fixing made of ABS UL94-V-0, flame retardant
- Polyester fleece equalising element, compliant with VDI 6022
- Internal lining made of approx. 6 mm thick closed-cell vinyl foam
- Lip seal made of Evoprene
