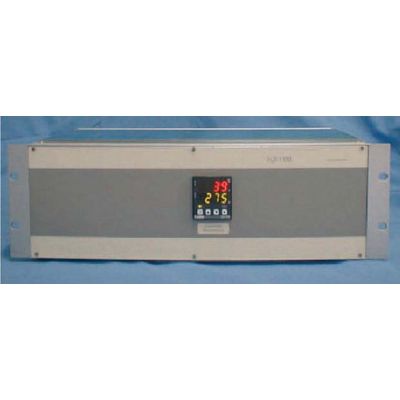

American Ecotech - Model HTO-1000 -TRS/NH3 Converter
The Ecotech HTO-1000 Thermal Oxidizer is a thermal converter designed to be used with nitrogen gas analyzers for the measurement of ammonia (NH3) or with sulfide dioxide gas analyzers for the measurement of hydrogen sulfide (H2S) or total reduced sulfide (TRS). The HTO-1000 can also be used for Hydrocarbon removal from air creating hydrocarbon free zero air. The Ecotech Model HTO-1000 thermal oxidizer is specifically configured for each gas application by using different catalysts and operating temperatures. The converter is available with a SOX scrubber for use in hydrogen sulfide (H2S) applications. The oxidizer is used to oxidize gaseous compounds in an atmosphere containing oxygen.
Ammonia (NH3)
- Conversion Efficiency: 88 – 94%
- Oven temperature: 680°C
Hydrogen Sulfide (H2S) (as the H2S-1000)
- Conversion Efficiency: >95%
- Oven Temperature: 350°C
- Range: 0-2000 ppb H2S
- SOX Scrubber Lifetime: 300 ppm-hours
Total Reduced Sulfur (TRS)
- Conversion Efficiency: >95%
- Oven Temperature: 900°C
- Range: 0-20,000 ppb
NOTE: For TRS measurement, the design of the quartz converter complies with US EPA method for the Determination of Total Reduced Sulfur found in the Federal Register 40 CFR Ch1, Part 60, App A, Method 16A (7 - 1 - 85 edition). The use of a quartz tube is derived from this method and utilizes the operating temperature recommended by US EPA guidelines mentioned in Section 3.4 of 800°C ± 100°C.
- Power: 110 VAC, 60Hz (5A slow blow fuse) or 240 VAC, 50Hz (3.15A slow blow fuse) - please specify
- Consumption: 200 VA
- Weight: 22 lbs (10 kg)
- Dimensions: 8.7” x 19” x 8.7” (220mm x 484mm x 220mm) 5RU height (includes rack mount ears)
- Operating temperature: 25-1000C
- Gas temperature accuracy: 5C
- Flow rate: 0.1 – 1.5 l/min
- Quartz tube volume: 88.5 cm3
- Gas pressure: Vacuum to maximum of 2 bars
- Response time: 5 – 10% of rise/ fall time of analyzer
