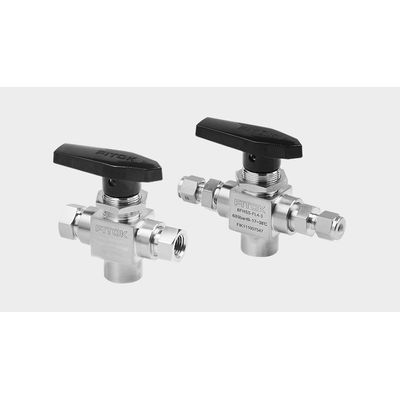

Fitok - Model BF and BFH Series -Trunnion Ball Valves

FromFitok Group

SHARE

BF and BFH Series Trunnion Ball Valves feature a compact, maximum-flow design, with a working pressure of up to 10,000 psig (690 bar). These valves feature a trunnion-style ball to prevent blowout and a blowout-proof stem. Designed for low operating torque, these valves also include automatic seat sealing compensation. Spring-loaded seats provide leak-tight integrity in both low and high pressure systems and reduce seat wear from pressure surges. A low temperature service option is available, as well as valves for "fast fill" CNG filling station applications. ECE R110 type approval is available. The handle serves as an indicator of flow direction.

Most popular related searches

quarter-turn ball valve

3 way ball valve

electric actuator

leak tightness testing

pressure reducer

tightness testing

Working pressure up to 10,000 psig (690 bar)
Working temperature: 0°F to 450°F (-18°C to 232°C)
Orifice size: 0.19" (4.8 mm)
Fixed ball with double sealing
Trunnion-style ball to prevent ball blowout
Automatic compensation of seat sealing
Low operating torque
Blowout proof stem
Handle as indicator of flow direction
Positive handle stop
Handle color options available
Pneumatic and electric actuator available
Panel mountable
Compact maximum-flow design
2- or 3-way flow patterns
The inlet of 3-way valve can be any port
Low-temperature service option available
BF series 3-way ball valves for "fast fill" CNG filling station application available
Spring-load seats to provide leak tight integrity in both low-and high-pressure systems and reduce seat wear from pressure surges
BF series ball valves with ECE R110 type approval available
Leak-tight performance testing with nitrogen or compressed air for every valve at the rated pressure (not higher than 6000 psig) to meet the requirement of no visible leak
