Vulcan - Trunnion Load Cell

SHARE

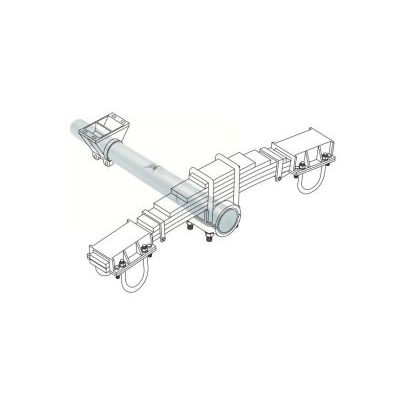

The Vulcan Trunnion Load Cell is designed to fit single point suspensions in heavy duty off-road applications. The trunnion load cell replaces the 4” diameter by 48” or 54” long trunnion tubes or dead axles in existing suspensions.

Most popular related searches
load cell
on-board weighing
weighing system
  • Easy installation - just replace your existing trunnion
  • Bolts in - no welding required
  • No trailer or suspension modifications needed
  • Simple and quick scale installation for existing trailers
  • Uses standard suspension bushings and parts
  • Rugged - machined from a solid bar of high strength alloy steel
  • Compatible with most electronic systems
  • Excellent for both on-road and off-road applications
  • Capacity:  75,000 lbs
  • Accuracy: Typical system error less than 1% GVW
  • Output: .38mV/V at 25,000 lbs
  • Weight: L32 -170 lbs,  L33 - 190 lbs
  • Material: High strength alloy steel
  • Finish: Plated for increased rust protection
