Standard - Trunnion Mounted Ball Valves
FromPerar s.p.a

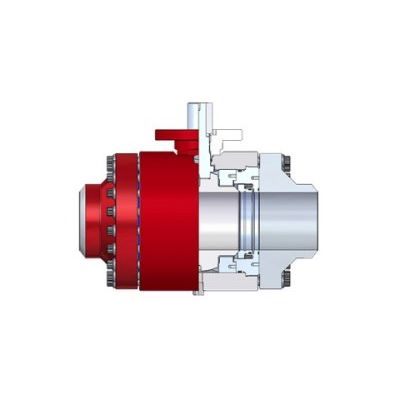

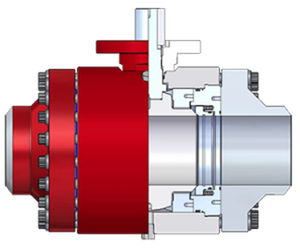

Compact Ball valve is a manufacturer standard design suitable to combine a compact ball valve design with robustness and reliable performances. The valves do not rely on lubricant or grease to assist sealing between the ball and seat also when metal-to-metal sealing is used. The valve design is based on trunnion mounted or support plate configuration in order to get the operating torque as lower as possible.
Most popular related searches
ball valve
compact ball valve
trunnion mounted ball valve
tungsten carbide
fire test
fire testing
trunnion mounted valve
quarter-turn ball valve
ASTM A193
- API6A design
- Bi-directional sealing
- Spring loaded metal-to-metal seats
- End flange connection directly to the valve body
- Valve stem retained by shoulder on the body as anti-blow out design
- End flanges sized to withstand bending load up to 100% of pipe yield at full working pressure
- Fire testing to ISO 10497
- Compact design to save between 50% and 70% of valve weight if compared to standard ANSI
- valves
- Model: Standard design
- Pressure Classes: 3750 psi
- Size: 2” to 14”
- Size: 16” to 30” Available on request (to be engineered)
- Pressure Classes: 6250psi
- Size: 2” to 12”
- Size: 14” to 24” Available on request (to be engineered)
- Pressure Classes: 10000psi
- Size: 2” to 12” Available on request (to be engineered)
- Pressure Classes: 10000psi
- Size: 2” to 10”
- Model: Standard design
- Pressure Classes: 3750 psi
- Size: 2” to 14”
- Size: 16” to 30” Available on request (to be engineered)
- Pressure Classes: 6250psi
- Size: 2” to 12”
- Size: 14” to 24” Available on request (to be engineered)
- Pressure Classes: 10000psi
- Size: 2” to 12” Available on request (to be engineered)
- Pressure Classes: 10000psi
- Size: 2” to 10”
Body, Closure, Flange
- AISI 4130 (Uncoated / Xylan Coated)
- ASTM A694-F60
- Duplex 22% Cr
- Superduplex 25% Cr
- SS 410
- Inconel 625
- ASTM A694-F60 + Inconel 625 overlay
BODY SEALS / SEAT SEALS
- OR – NBR AED
- OR – HNBR AED
- OR – VITON A
- OR – VITON GLT
- LIPSEAL – PTFE + ELGILOY
- TRIM (SEAT, BALL AND STEM)
- AISI 4130 – 0.003” ENP
- ASTM A694-F60 – 0.003” ENP
- 17-4 PH
- Duplex 22% Cr
- Superduplex 25% Cr
- SS 410
- Inconel 625
- Inconel 718
SEAT INSERT
- PEEK
- PCTFE / KEL-F
- NYLON (DEVLON V-API)
- METAL WITH TUNGSTEN CARBIDE COATING (MIN. TH. 0.2 mm)
BOLTING
- ASTM A320-L7 / A193-B7 (XYLAN COATED)
- ASTM A320-L7M / A193-B7M (XYLAN COATED)
- ASTM A453-GR.660 (XYLAN COATED)
