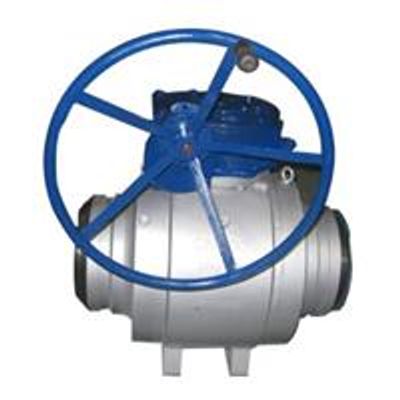

Onero - Model ONR 14 CSTB 12 -Trunnion Mounted Gear Operated Ball Valve

FromZhejiang Onero Valve Co., Ltd.

SHARE

China Trunnion Mounted Ball Valve: Gear operation, WCB, WCC, WC6, WC9 body material, full bore or reduced bore, soft seated or metal seated 2"-48".

Most popular related searches

trunnion mounted ball valve

quarter-turn ball valve

trunnion mounted valve

gear operator valve

Design and manufacture: API 6D, API 608, BS 5351, ASME B16.34
Test and inspection: API 6D, API 598
Face to face dimensions: ASME B16.10
Flanged end: ASME B16.5, ASME B16.47
Butt-welding end: ASME B16.25

Size: 2" to 48"
Class: 150LB to 2500LB
Type: Floating ball and trunnion mounted, full bore or reduced bore, soft seated or metal seated, top entry or side entry, one-piece/two-piece/three-piece, anti-blow out stem, antistatic design
Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, LF2, A105, F304, F316, F304L, F316L, F11, F22, DUPLEX SS, MONEL, ALLOY 20, CAST IRON etc
Operation: Gear operation
