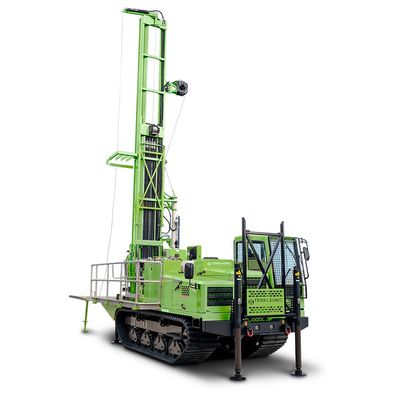

TSi - Model 150C -Crawler-Mounted Sonic Drill Rig

FromTerra Sonic International, LLC

SHARE

Full-size Sonic Power and Performance. The Terra Sonic 150C Series Sonic Drill Rig sets the standard in sonic drilling. No other sonic drill rig can get a sonic drilling project completed faster, safer, or more efficiently. The 150C Series features the proprietary TSi Sonic Head Oscillator, making it the most powerful sonic drill rig in the world.

Most popular related searches

sonic drilling rig

ultrasonic processor

crawler mounted drill rig

dewatering project

drilling equipment

construction dewatering

Ample Power A 278 HP Tier 3 diesel engine powers all driving, drilling and accessory hydraulic functions
True Sonic Power The exclusive TSi 150 Series Sonic Oscillator utilizes up to 150 HP to generate powerful resonant sonic energy in the drill string to a drilling depth of up to 800 ft.
Safer by Design An extra-large work platform and fold-down walkways optimize crew operating efficiency and safety
More Drilling Flexibility The 32-ft. mast with 24.5 ft. of head travel allows drilling angles anywhere between vertical and 45°
Efficient Design The drive system operates the feed frame with half the chain length and rollers of conventional drive methods
Extreme Capability The crawler-mounted design has full rotational drilling capability
Maximum Accessibility Rugged tracks allow the TSi 150C to easily each drilling sites in virtually any type of terrain
Greater Drilling Efficiency Down force of 15,000 lbs. and pull back force of 22,000 lbs. maximizes drilling speed and efficiency
FMC Bean Pump A piston pump plumbed into the drilling system and water tank enables flushing of drill cuttings from borehole
