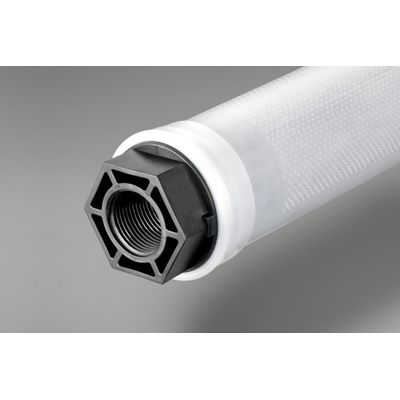

JetFlex - Model TD Series -Tube Air Diffuser

SHARE
The JetFlex® TD series of tube air diffuser is a fine bubble aeration system that uses compressed air. Our tube diffuser combine cost-effective design, low installation and maintenance costs with reliability, durability and efficiency. They are suitable for both intermittent and continuous operation. We also offer replacement membranes to increase efficiency in existing aeration systems.
Most popular related searches
tube air diffuser
tube diffuser
air diffuser
fine bubble aeration system
industrial wastewater aeration
industrial wastewater aerator
diffusion tube
water aeration
water aerator
square steel pipe
The advantages of our JetFlex® TD tube diffusers at a glance:
  • Different perforation types adapted to the operating conditions and requirements
  • Precise slits for high oxygen input and low pressure drop
  • Low pressure loss due to the grooved polypropylene carrier pipe
  • Implementation of high occupancy densities possible
  • Standard length of 500 mm, 750 mm and 1000 mm
  • Standard diameters of 65 mm and 90 mm
  • Assembly or connection to round or square steel pipes possible
  • Wide range of connection options for steel and plastic pipes – thanks to a comprehensive range of accessories
  • Reliability even in the highest temperature ranges
  • Production from standard and special materials: EPDM, silicone and PUR
  • Softener-free membrane made of silicone and PUR
  • Standard diffuser are available from stock
  • Quick and easy installation

Our JetFlex® TD tube diffuser are used for the following aeration applications:

  • Aeration of drinking water
  • Aeration of waste water
  • oxygen input into aeration tanks
  • Aeration of rivers and lakes
  • Pre-treatment of industrial waste water
  • Aeration of constructed wetlands
  • C02 gassing for neutralization
  • oxygen input for sludge stabilisation
  • Aeration of fish ponds and aquaculture
  • Aeration of concentrate and leachate from bio-gas plants
  • Supports for piping
  • Dummy plug
  • Adapter
  • Gasket for tube diffuser TD65-2 G
  • Stainless steel clamp
  • Clamping pliers
  • Stainless steel connector for square tubes
  • End plug for floor bracket
  • Floor bracket for aerator
  • Tapping clamp with different threads for various pipe diameters
  • EPDM holder
