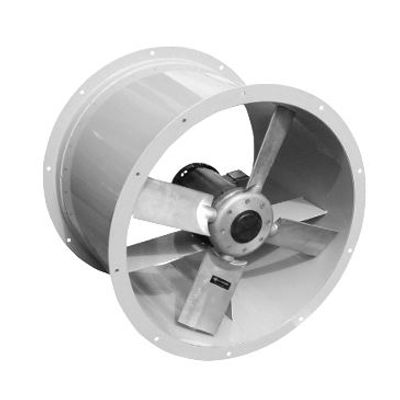

Romla FANs - Model TB -Tube Axial Inline Fans
Romla FANs offers the Model TB Tube Axial Fans, designed for efficient ventilation in industrial and commercial applications. These fans come with robust construction, capable of handling variable airflow requirements and high static pressures. Suitable for continuous operation, the Model TB fans are engineered to maintain optimal performance under demanding conditions. The fans feature precision-balanced blades, enhancing energy efficiency and reducing noise levels. These tube axial fans are ideal for installations that require reliable air movement, such as manufacturing plants, warehouses, and large commercial spaces. The design also ensures ease of maintenance and long operational life, making them a cost-effective solution for large-scale ventilation needs.
- Cast Aluminum Airfoil Propeller– Special heavy duty cast aluminum non-sparking propeller. These propellers are easily removed with the use of taper lock bushings.
- Heavy Gauge Steel Housing- Heavy gauge steel housing with steel angle end flange rings for superior strength. Rings contain mounting holes for securing fan to ducting.
- Motors– Heavy duty totally enclosed fan cooled (TEFC) or explosion proof ball bearing motors for years of trouble free operation. Open drip proof, TEFC, or explosion proof available for belt driven fans.
- Variable Pitch Drives To 7-1/2 Hp– Adjustable for final systems RPM. Belts sized for 165% of driven Hp.
- Self-Aligning Pillow Block Bearings– Selected with a basic rating fatigue life (L10) in excess of 80,000 hours at each fan’s maximum operating speed when mounted in a horizontal configuration. Extended lubrication lines are standard on the Model TB.
- Adjustable Motor Base– An adjustable motor base is provided for tightening the fan belts.
- UL Listing– UL705 listing is available on TEFC models up to 10 Hp.
