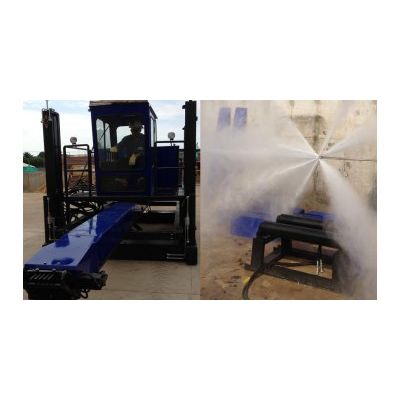

Tube Cleaner, 3 or 5 Lances

The I-930-5 robotic five lance tube cleaner cleans 3 or 5 tubes at the same time and offers unequalled productivity. It cleans tube bundles up to 10metres long and tubes as small as 10mm ID (longer lance versions available).

Most popular related searches

Hydraulic driven by a 33 horsepower Hatz silenced engine.

The 3 lance version is used with our 300 horsepower pump and the 5 lance model is used with our 500 horsepower pump.
Working pressures of 1,000 bar or 1,400 bar easily clean blocked tubes.

All controls for movement including controlling the high pressure pump pressure are located inside the operator`s cabin.

Air conditioning is supplied as an option for hot countries, heaters supplied for cold locations.

Technical Data:

Length: 1,060 cm / 13.21 feet
Width: 250 cm / 7.57 feet
Height: 270 cm / 8.18 feet
Weight: 3,000 Kg / 6,600 lbs
Lance Stroke: 930 cm / 28.18 feet
Cross Travel: 155 cm / 4.70 feet
Up Stroke: 188 cm / 5.70 feet
Number of lances: 3 or 5
Lance diameter: 10 mm up to 14 mm
Flow per lance: 70.00 l/min / 18.42 gpm
Lance speed: From 1 metre up to 1.5 metres per second
Lance thrust: 1,500 Kg / 3,300 lbs
Water Pressure: 15,000 psi (1,034 bar)
Diesel engine: Hatz model, 2L41C, 2 cylinder, 24.30 Kw, 3,000 rpm
Oil tank: 140 litres / 36.80 gallons
Oil cooling: Air
