Brentwood -Â Model IFR-6000 Series -Tube Settlers
Brentwood’s blue IFR-6000 Series tubes integrate with our sludge collector systems to provide comprehensive clarification solutions. They are designed to increase treatment capacity without the large footprint and are engineered for maximum structural integrity. Brentwood tube settlers are a cost-effective solution for drinking water and wastewater plants to increase treatment capacity, reduce new installation footprints, improve effluent water quality, and decrease operating costs. We utilize our knowledge and experience with the clarification process to provide complete tube settler systems that are custom-engineered for any application. Our blue tubes are also designed to complement Brentwood`s sludge collection and removal systems, allowing customers to purchase a fully integrated sludge management solution from a consistent, single-source supplier.- Increase settling area without increasing footprint
- Minimize turbidity load on filters
- Cut coagulant dosages by up to half
- Integrate SedVac & Polychem for sludge removal

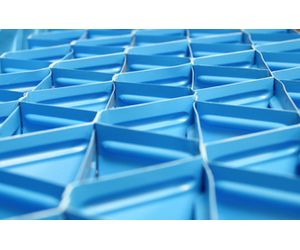

Precise Assembly
Engineered for quality, tube settler sheets align to form uniform modules, evenly distributing load for maximum lifespan.

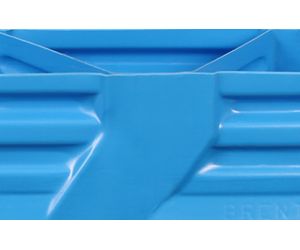

Stiffening Ribs
Formed-in stiffening ribs strengthen flute openings for industry-leading weight-bearing capacity.
NSF Certified
Modules are certified to NSF/ANSI/CAN Standard 61 for drinking water applications.

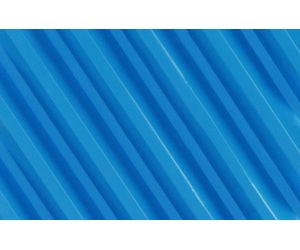

Trapezoidal Flutes
Corrugated sheets forms dual-angle flutes that encourage sediment compaction, allowing even the finest floc to settle.

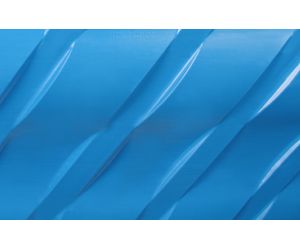

Wave Sheets
Unique wave sheets align perfectly with corrugations on adjacent tube settler modules to provide even flute spacing and create a nesting effect.

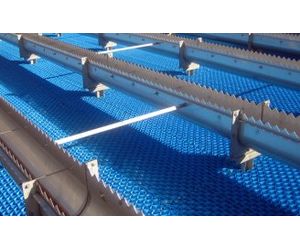

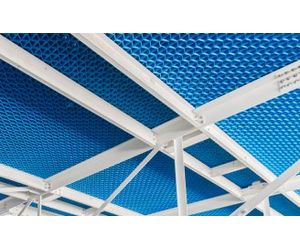

Brentwood offers custom-designed support systems for every installation that are engineered to accommodate various loading scenarios with an appropriate safety factor.

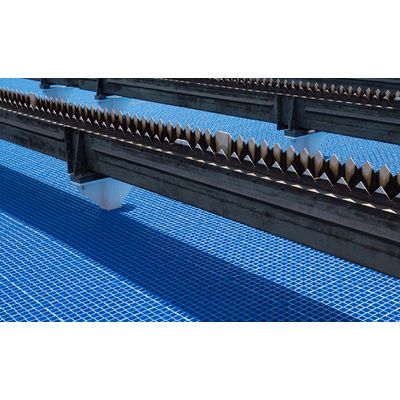

Troughs and weirs for tube settler systems are designed to handle peak flows, meet local regulatory requirements, and integrate with system supports.

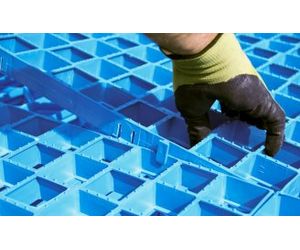

Installed on top of tube settler modules, AccuGrid interlocking panels provide a protective layer from foot traffic, hydraulic impact, and UV degradation.
